- Charger
- N-Series

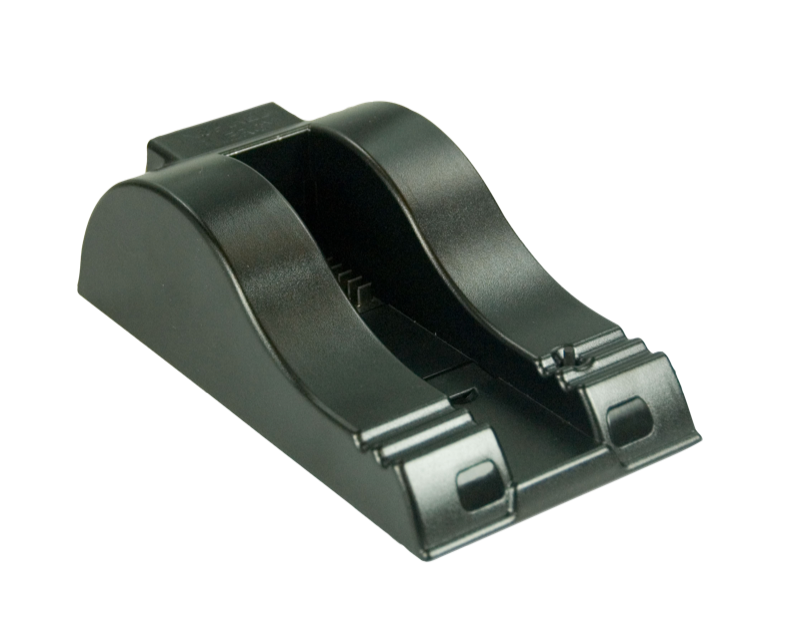

CH1000
Single-bay SMBus desktop charger and calibrator for N and R-series packs.
- Bays
- 1
- Charges
- 4 packs
- Cords
- 3 regions
Specifications
| Bays | 1 |
|---|---|
| Functions | Charge, Calibrate |
| Mains input | 110-240 VAC, 50-60 Hz |
| Power supply included | Yes |
| AC cord options | US, EU, UK |
| Mating connector | 5-Pin Standard Connector |
| Dimensions (in) | 7" x 3.5" x 2.25" |
| Dimensions (mm) | 180 x 92 x 58 |
Approvals
- UL
- CE
- REACH
- RoHS3
Packs this works with
Generated from the pack records. Nobody typed this list.
Documents
That address never changes. The revision is a field, not part of the filename, so issuing revision 1.2000000000000002 replaces the file behind the same URL. Today the version is in the filename, so every revision 404s the previous link.
Typical applications
- Medical
- Handheld instrumentation
About this part
The workhorse single-bay unit. Universal supply for global deployment, with the mains cord specified per country at order time.
