- Battery pack
- N-Series

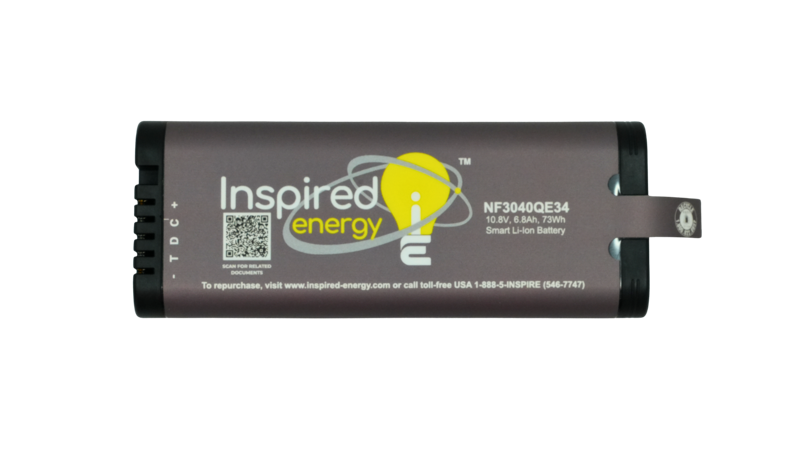

NF3040QE34
10.8 V 6.8 Ah smart lithium-ion battery pack.
- Voltage
- 10.8 V
- Capacity
- 6.8 Ah
- Energy
- 73 Wh
- Current
- 10 A
Specifications
| Nominal voltage | 10.8 V |
|---|---|
| Capacity | 6.8 Ah |
| Energy | 73 Wh |
| Maximum discharge current | 10 A |
| Rated power | 75 W |
| Chemistry | Lithium-ion |
| Cell | 6 x 18650 |
| Cell array | 3S2P |
| Shape | Rectangular |
| Dimensions (in) | 5.9" x 2.4" x 0.9" |
| Dimensions (mm) | 151 x 59 x 22.4 |
| Equivalent lithium content | 6 g |
| Fuel gauge | Always on 5-Bar LCD |
| IP rating | None |
| Mating connector | 5-Pin Standard Connector |
| Cavity size | 23.5mm x 60mm cross section |
Approvals
- UL
Chargers for this pack
Accessories that fit
- 610005 Straight Connector - TE Part Number: 5787446-1
- 610007 90° Connector with Right-Hand Key - TE Part Number: 5787422-1
- 610018 90° Connector with Left-Hand Key - TE Part Number 5787428-1
- 629028 3', 5-conductor straight cable for 204x, 205x, 304x & 305x range batteries.
- 629030 3', 2-Conductor coiled cable
- 936140 Travel / dust cap for 204x range batteries
- ATA004N USB-to-SMBus smart battery interface with “Y” USB/Battery cable.
- BL237A Connector Mounting Circuit Board
- EB397A Connector Board with Ideal Diode Circuit.
Documents
- Datasheet /downloads/NF3040QE34/datasheet
- Declaration of conformance / testing summary /downloads/NF3040QE34/conformance
That address never changes. The revision is a field, not part of the filename, so issuing revision 1.1 replaces the file behind the same URL. Today the version is in the filename, so every revision 404s the previous link.
About this part
NF3040QE34 Smart Lithium-Ion Battery: The NF3040 are ideal for low temperature applications as the low internal impedance enables the cells to deliver good capacity and discharge current. The NF3040 can perform as low as -30°C (note, in cases of low temperature applications, we strongly recommend testing in your specific application). Also, with its 10A discharge capability, the NF3040 is ideally suited as a small “hot-swap” battery to hold up the device for a short period while the main battery is charged. The NF3040QE34 has IEC UL/CSA with TUV FuS certifications. Features: • SMbus • Pull tab for easy removal • On-pack LCD Display for Relative SOC Indication Our expertise lies in creating customized battery hybrids that seamlessly integrate standard components to deliver optimal performance. Want to connect with our experts? Click here to contact our technical, engineering, and manufacturing teams in Newberry, Florida. NF3040QE34 Smart Li-ion battery customization options: • SHA-1 secure handshake • Custom label • Custom Firmware • Additional performance options for OEM applications N-series chargers are recommended for these batteries. For Quantities 1-11:$163.81 USD each Ready to order or need additional information on volume pricing? Click the "Get a Quote" button below to place your order.
