- Battery pack
- N-Series
NH2057ED34

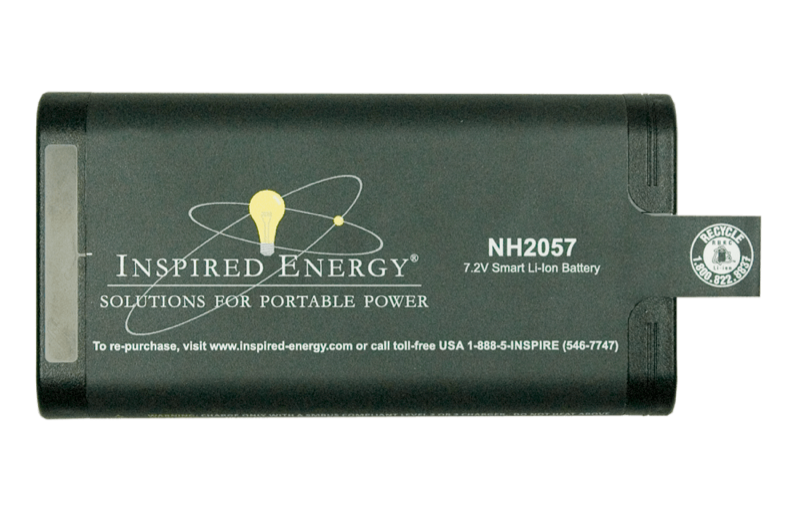

7.2 V 13.6 Ah smart lithium-ion battery pack.
- Voltage
- 7.2 V
- Capacity
- 13.6 Ah
- Energy
- 98 Wh
- Current
- 10 A
Specifications
| Nominal voltage | 7.2 V |
|---|---|
| Capacity | 13.6 Ah |
| Energy | 98 Wh |
| Maximum discharge current | 10 A |
| Rated power | 50 W |
| Chemistry | Lithium-ion |
| Cell | 8 x 18650 |
| Cell array | 2S4P |
| Shape | Rectangular |
| Dimensions (in) | 6" x 3.1" x 0.9" |
| Dimensions (mm) | 153 x 78.7 x 23 |
| Equivalent lithium content | 8 g |
| Fuel gauge | Always on 5-Bar LCD |
| IP rating | None |
| Mating connector | AMP P/N 5787422-1 or 5787446-1 |
| Cavity size | 23.5mm x 80mm cross section |
| Optional belt pack | MPL205X or MCL205X |
Approvals
- UL
Chargers for this pack
- CH1000 Charger, charge + calibrate
- CH4000 Charger, charge
- CH4040 2 bay, charge
- CH5000 Charger, charge + calibrate
- CH5050 2 bay, charge + calibrate
- CH5555 4 bay, charge + calibrate
- CH6555 6 bay, charge + calibrate
- CH7000 Charger, charge
- CR12 12 bay, charge
- CH1111 4 bay, charge + calibrate
- CH4444 4 bay, charge
- CH1000CAL Charger, charge + calibrate
- CH1010 2 bay, charge + calibrate
- CH1111CAL Charger, charge + calibrate
- CH7070 2 bay, charge
- CH7100 Charger, charge
- CH7171 Charger, charge
Accessories that fit
- 610005 Straight Connector - TE Part Number: 5787446-1
- 610007 90° Connector with Right-Hand Key - TE Part Number: 5787422-1
- 610018 90° Connector with Left-Hand Key - TE Part Number 5787428-1
- 629030 3', 2-Conductor coiled cable
- 936186 Travel / dust cap for 205x range batteries
- 936192 Battery Mounting Guide Block for 203x, 204x, 205x batteries Sold individually Circuit board and mounting hardware not included.
- ATA004N USB-to-SMBus smart battery interface with “Y” USB/Battery cable.
- BL237A Connector Mounting Circuit Board
- EB397A Connector Board with Ideal Diode Circuit.
- MCL205VC Car Charger No description published.
- 629028 3', 5-conductor straight cable for 204x, 205x, 304x & 305x range batteries.
Documents
- Datasheet /downloads/NH2057ED34/datasheet
- Declaration of conformance / testing summary /downloads/NH2057ED34/conformance
