- Battery pack
- N-Series

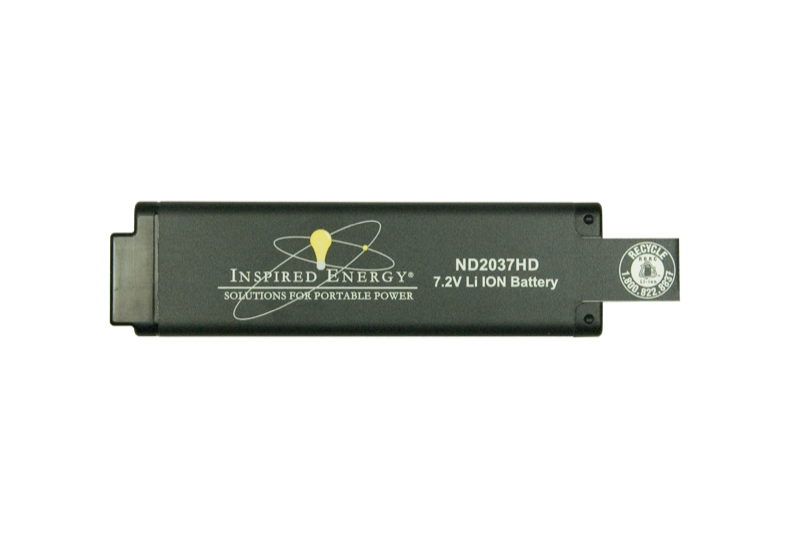

ND2037HD34
7.2 V 6.8 Ah smart lithium-ion battery pack.
- Voltage
- 7.2 V
- Capacity
- 6.8 Ah
- Energy
- 49 Wh
- Current
- 8 A
Specifications
| Nominal voltage | 7.2 V |
|---|---|
| Capacity | 6.8 Ah |
| Energy | 49 Wh |
| Maximum discharge current | 8 A |
| Rated power | 40 W |
| Chemistry | Lithium-ion |
| Cell | 4 x 18650 |
| Cell array | 2S2P |
| Shape | Rectangular |
| Dimensions (in) | 6" x 1.7" x 0.9" |
| Dimensions (mm) | 153 x 42 x 23 |
| Equivalent lithium content | 4 g |
| Fuel gauge | Always on 5-Bar LCD |
| IP rating | None |
| Mating connector | AMP P/N 5787422-1 or 5787446-1 |
| Cavity size | 24mm x 43mm cross-section |
Approvals
- UL
Chargers for this pack
- CH1000 Charger, charge + calibrate
- CH4000 Charger, charge
- CH4040 2 bay, charge
- CH5000 Charger, charge + calibrate
- CH5050 2 bay, charge + calibrate
- CH5555 4 bay, charge + calibrate
- CH6555 6 bay, charge + calibrate
- CH7000 Charger, charge
- CR12 12 bay, charge
- CH1000CAL Charger, charge + calibrate
- CH1010 2 bay, charge + calibrate
- CH1111 4 bay, charge + calibrate
- CH1111CAL Charger, charge + calibrate
- CH4444 4 bay, charge
- CH7070 2 bay, charge
- CH7100 Charger, charge
- CH7171 Charger, charge
Accessories that fit
- 610005 Straight Connector - TE Part Number: 5787446-1
- 610007 90° Connector with Right-Hand Key - TE Part Number: 5787422-1
- 610018 90° Connector with Left-Hand Key - TE Part Number 5787428-1
- 629080 3' 5-Way cable
- 936188 Travel / dust cap for 203x range batteries
- ATA004N USB-to-SMBus smart battery interface with “Y” USB/Battery cable.
- BL237A Connector Mounting Circuit Board
- EB397A Connector Board with Ideal Diode Circuit.
Documents
- Datasheet /downloads/ND2037HD34/datasheet
- Declaration of conformance / testing summary /downloads/ND2037HD34/conformance
That address never changes. The revision is a field, not part of the filename, so issuing revision 1.7 replaces the file behind the same URL. Today the version is in the filename, so every revision 404s the previous link.
About this part
ND2037HD34 Smart Lithium-Ion Battery: The ND2037 is ideal for low temperature applications as the low internal impedance enables the cells to deliver good capacity and discharge current. The ND2037 can perform as low as -10C (Note, in cases of low temperature applications, we strongly recommend testing in your specific application). Also, with its' 8A discharge capability, the ND2037 is ideally suited as a small hot-swap battery to hold up the device for a short period while the main battery is charged. Features: • SMbus • Pull tab for easy removal • On-pack LCD Display for Relative SOC Indication Our expertise lies in creating customized battery hybrids that seamlessly integrate standard components to deliver optimal performance. Want to connect with our experts? Click here to contact our technical, engineering, and manufacturing teams in Newberry, Florida. ND2037HD34 Smart Li-ion battery customization options: • SHA-1 secure handshake • Custom label • Custom Firmware • Additional performance options for OEM applications Need IEC, UL, CSA 62133-2, KC, BIS PSE approved? Consider the ND2037QE34 smart battery Looking for something with a higher discharge rate and lower temperature option? We recommend the ND3037HD29 smart battery The ND2037HD34 is our newest model, designed to outperform the previous ND2037HD29 and ND2037HD31. For Quantities 1-11:$120.58 USD each Ready to order or need additional information on volume pricing? Click the "Get a Quote" button below to place your order.
