- Battery pack
- N-Series

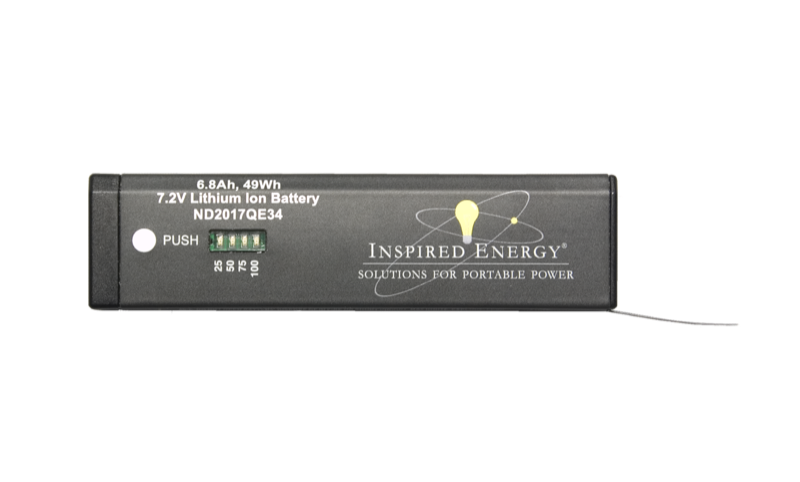

ND2017QE34
7.2 V 6.8 Ah smart lithium-ion battery pack.
- Voltage
- 7.2 V
- Capacity
- 6.8 Ah
- Energy
- 49 Wh
- Current
- 3 A
Specifications
| Nominal voltage | 7.2 V |
|---|---|
| Capacity | 6.8 Ah |
| Energy | 49 Wh |
| Maximum discharge current | 3 A |
| Rated power | 15 W |
| Chemistry | Lithium-ion |
| Cell | 4 x 18650 |
| Cell array | 2S2P |
| Shape | Rectangular |
| Dimensions (in) | 5.69" x 1.48" x 0.79" |
| Dimensions (mm) | 144.65 x 37.59 x 20.07 |
| Fuel gauge | Push button 4-bar LED |
| IP rating | None |
| Mating connector | 5-Pin Standard Connector |
Approvals
- UL
Chargers for this pack
- CH1000 Charger, charge + calibrate
- CH1000CAL Charger, charge + calibrate
- CH1010 2 bay, charge + calibrate
- CH1111 4 bay, charge + calibrate
- CH4000 Charger, charge
- CH4444 4 bay, charge
- CH5555 4 bay, charge + calibrate
- CH6555 6 bay, charge + calibrate
- CH7000 Charger, charge
- CH7070 2 bay, charge
- CH7100 Charger, charge
- CH7171 Charger, charge
- Embedded Charger Boards Charger, charge
Accessories that fit
- 610005 Straight Connector - TE Part Number: 5787446-1
- 610007 90° Connector with Right-Hand Key - TE Part Number: 5787422-1
- 610018 90° Connector with Left-Hand Key - TE Part Number 5787428-1
- ATA004N USB-to-SMBus smart battery interface with “Y” USB/Battery cable.
- BL237A Connector Mounting Circuit Board
- EB397A Connector Board with Ideal Diode Circuit.
Documents
- Datasheet /downloads/ND2017QE34/datasheet
- Declaration of conformance / testing summary /downloads/ND2017QE34/conformance
That address never changes. The revision is a field, not part of the filename, so issuing revision 2.2 replaces the file behind the same URL. Today the version is in the filename, so every revision 404s the previous link.
About this part
ND2017QE34 Smart Lithium-Ion Battery: The ND2017QE34 is the IEC, UL, & CSA 62133-2, KC approved model of the ND2017A34 (2S2P) 7.2V smart lithium ion battery which incorporates the standard features that designers and engineers have come to rely on for safety and function, such as SMbus , a pull tab for easy removal and on-pack LED display for relative SOC indication. Features: • SMbus • Pull tab for easy removal • On-pack LCD Display for Relative SOC Indication Our expertise lies in creating customized battery hybrids that seamlessly integrate standard components to deliver optimal performance. Want to connect with our experts? Click here to contact our technical, engineering, and manufacturing teams in Newberry, Florida. ND2017QE34 Smart Li-ion battery customization options: • SHA-1 secure handshake • Custom label • Custom Firmware • Additional performance options for OEM applications Looking for something with a higher discharge rate and lower temperature option? We recommend the ND3037HD29 smart battery Need additional capacity? Check out our NB4037 smart batteries The ND2017QE34 is our newest model, designed to outperform the previous ND2017A22 , ND2017A24 & ND2017A29 models. For Quantities 1-11:$123.24 USD each Ready to order or need additional information on volume pricing? Click the "Get a Quote" button below to place your order.
