- Battery pack
- N-Series
Ni2020ED29

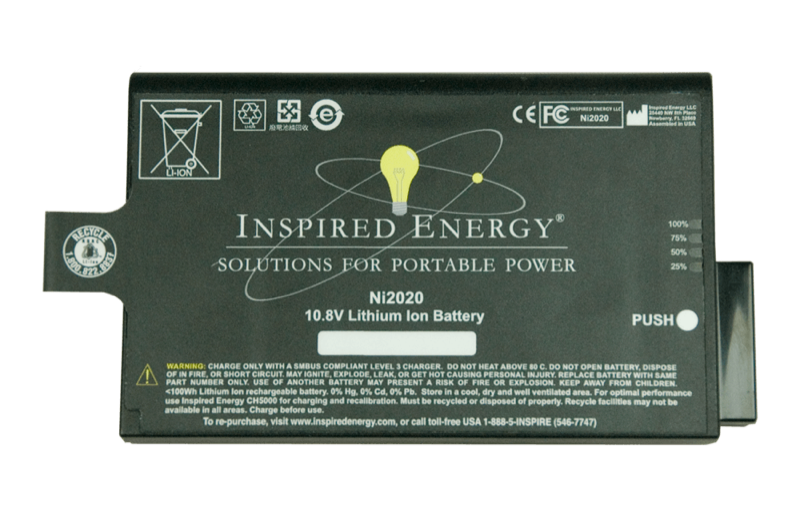

10.8 V 8.4 Ah smart lithium-ion battery pack.
- Voltage
- 10.8 V
- Capacity
- 8.4 Ah
- Energy
- 91 Wh
- Current
- 8 A
Specifications
| Nominal voltage | 10.8 V |
|---|---|
| Capacity | 8.4 Ah |
| Energy | 91 Wh |
| Maximum discharge current | 8 A |
| Rated power | 60 W |
| Chemistry | Lithium-ion |
| Cell | 9 x 18650 |
| Cell array | 3S3P |
| Shape | Rectangular |
| Dimensions (in) | 5.9" x 3.5" x 0.8" |
| Dimensions (mm) | 149.1 x 89.2 x 20.3 |
| Equivalent lithium content | 7.8 g |
| Fuel gauge | Push button 4-bar LED |
| IP rating | None |
| Mating connector | AMP P/N 5787422-1 or 5787446-1 |
| Cavity size | 21mm x 90 mm cross section |
Chargers for this pack
- CH1000 Charger, charge + calibrate
- CH4000 Charger, charge
- CH4040 2 bay, charge
- CH5000 Charger, charge + calibrate
- CH5050 2 bay, charge + calibrate
- CH5555 4 bay, charge + calibrate
- CH6555 6 bay, charge + calibrate
- CH7000 Charger, charge
- CR12 12 bay, charge
- CH4444 4 bay, charge
- Embedded Charger Boards Charger, charge
- CH1000CAL Charger, charge + calibrate
- CH1010 2 bay, charge + calibrate
- CH1111 4 bay, charge + calibrate
- CH1111CAL Charger, charge + calibrate
- CH7070 2 bay, charge
- CH7100 Charger, charge
- CH7171 Charger, charge
Accessories that fit
- 610005 Straight Connector - TE Part Number: 5787446-1
- 610007 90° Connector with Right-Hand Key - TE Part Number: 5787422-1
- 610018 90° Connector with Left-Hand Key - TE Part Number 5787428-1
- 629010 3', 5-conductor straight cable
- 629011 3', 2-conductor, curly cable
- 629035 Overmolded 5-blade battery connector for 202x, 102x & 302x designs with 2-conductor, 3' coiled cable to 5.5x2.5mm, 90° coaxial power connector.
- 936143 Battery Mounting Guide Block for 202x batteries Sold individually Circuit board and mounting hardware not included.
- 936187 Travel / dust cap for 202x range batteries
- ATA004N USB-to-SMBus smart battery interface with “Y” USB/Battery cable.
- BL237A Connector Mounting Circuit Board
- EB397A Connector Board with Ideal Diode Circuit.
- 629041 2-conductor, straight cable with cigarette-lighter socket
Documents
- Datasheet /downloads/Ni2020ED29/datasheet
- Declaration of conformance / testing summary /downloads/Ni2020ED29/conformance
That address never changes. The revision is a field, not part of the filename, so issuing revision 2.1 replaces the file behind the same URL. Today the version is in the filename, so every revision 404s the previous link.
About this part
Ni2020ED29 Smart Lithium-Ion Battery: The Ni2020 is ideal for low temperature applications as the low internal impedance enables the cells to deliver good capacity and discharge current. The Ni2020 can perform as low as -10°C (note, in cases of low temperature applications, we strongly recommend testing in your specific application). Also, with its 8A/10A discharge capability, the Ni2020ED29 and the Ni3020HD25 are ideally suited as a small “hot-swap” battery to hold up the device for a short period while the main battery is charged. Features: • SMbus • Pull tab for easy removal • On-pack LCD Display for Relative SOC Indication Our expertise lies in creating customized battery hybrids that seamlessly integrate standard components to deliver optimal performance. Want to connect with our experts? Click here to contact our technical, engineering, and manufacturing teams in Newberry, Florida. Ni2020ED29 Smart Li-ion battery customization options: • SHA-1 secure handshake • Custom label • Custom Firmware • Additional performance options for OEM applications N-series chargers are recommended for these batteries. For Quantities 1-11:$197.62 USD each Ready to order or need additional information on volume pricing? Click the "Get a Quote" button below to place your order.
