- Battery pack
- N-Series
NH2054HD34

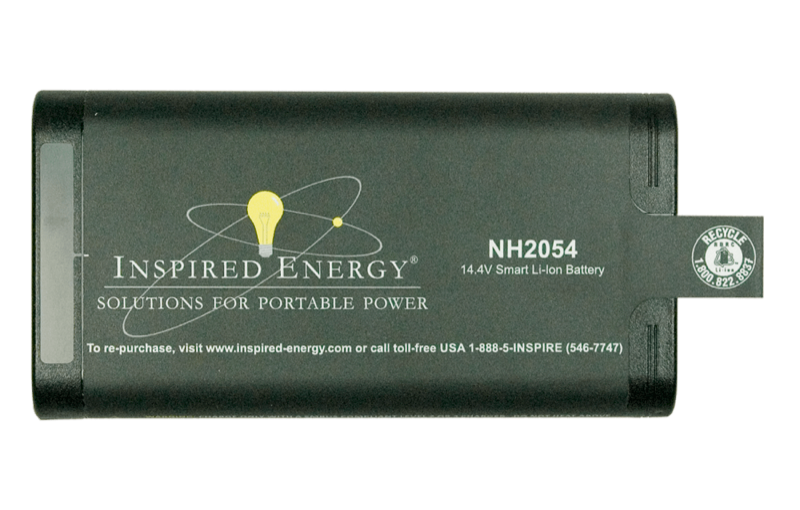

14.4 V 6.8 Ah smart lithium-ion battery pack.
- Voltage
- 14.4 V
- Capacity
- 6.8 Ah
- Energy
- 98 Wh
- Current
- 8 A
Specifications
| Nominal voltage | 14.4 V |
|---|---|
| Capacity | 6.8 Ah |
| Energy | 98 Wh |
| Maximum discharge current | 8 A |
| Rated power | 80 W |
| Chemistry | Lithium-ion |
| Cell | 8 x 18650 |
| Cell array | 4S2P |
| Shape | Rectangular |
| Dimensions (in) | 6" x 3.1" x 0.9" |
| Dimensions (mm) | 153 x 78.7 x 23 |
| Equivalent lithium content | 8 g |
| Fuel gauge | Always on 5-Bar LCD |
| IP rating | None |
| Mating connector | AMP P/N 5787422-1 or 5787446-1 |
| Cavity size | 23.5mm x 80mm cross section |
| Optional belt pack | MPL205X or MCL205X |
Stock numbers
| NSN | 6140-01-642-1007 |
|---|
Currently a sentence. On the live site these numbers sit inside the product description, where nothing can index or filter them. Defence buyers search by NSN.
Approvals
- UL
Chargers for this pack
- CH1000 Charger, charge + calibrate
- CH4000 Charger, charge
- CH4040 2 bay, charge
- CH5000 Charger, charge + calibrate
- CH5050 2 bay, charge + calibrate
- CH5555 4 bay, charge + calibrate
- CH6555 6 bay, charge + calibrate
- CH7000 Charger, charge
- CR12 12 bay, charge
- CH4444 4 bay, charge
- CH1111 4 bay, charge + calibrate
- CH1000CAL Charger, charge + calibrate
- CH1010 2 bay, charge + calibrate
- CH1111CAL Charger, charge + calibrate
- CH7070 2 bay, charge
- CH7100 Charger, charge
- CH7171 Charger, charge
Accessories that fit
- 629028 3', 5-conductor straight cable for 204x, 205x, 304x & 305x range batteries.
- 610005 Straight Connector - TE Part Number: 5787446-1
- 610007 90° Connector with Right-Hand Key - TE Part Number: 5787422-1
- 610018 90° Connector with Left-Hand Key - TE Part Number 5787428-1
- 629030 3', 2-Conductor coiled cable
- 936186 Travel / dust cap for 205x range batteries
- 936192 Battery Mounting Guide Block for 203x, 204x, 205x batteries Sold individually Circuit board and mounting hardware not included.
- ATA004N USB-to-SMBus smart battery interface with “Y” USB/Battery cable.
- BL237A Connector Mounting Circuit Board
- EB397A Connector Board with Ideal Diode Circuit.
- MCL205VC Car Charger No description published.
Documents
- Datasheet /downloads/NH2054HD34/datasheet
- Declaration of conformance / testing summary /downloads/NH2054HD34/conformance
That address never changes. The revision is a field, not part of the filename, so issuing revision 1.9 replaces the file behind the same URL. Today the version is in the filename, so every revision 404s the previous link.
About this part
NH2054HD34 Smart Lithium-Ion Battery: The NH2054HD34 is ideal for low temperature applications as the low internal impedance enables the cells to deliver good capacity and discharge current. The 2054 battery pack can perform as low as -20°C (note, in low temperature applications, we recommend testing the device at temperature to validate performance). Also, with its' 8A discharge capability, the NH2054 is ideally suited as a small “hot-swap” battery to hold up the device for a short period while the main battery is charged. Features: • SMbus • Pull tab for easy removal • On-pack LCD Display for Relative SOC Indication Our expertise lies in creating customized battery hybrids that seamlessly integrate standard components to deliver optimal performance. Want to connect with our experts? Click here to contact our technical, engineering, and manufacturing teams in Newberry, Florida. NH2054HD34 Smart Li-ion battery customization options: • SHA-1 secure handshake • Custom label • Custom Firmware • Additional performance options for OEM applications Need IEC, UL, CSA 62133-2, KC, BIS PSE approved? Consider the NH2054QE34 smart battery Looking for something with a higher discharge rate and lower temperature option? We recommend the NH3054HD34 smart battery Need additional capacity? Check out our NH2057HD34 smart batteries The NH2054HD34 is our newest model, designed to outperform the previous NH2054HD29 & NH2054HD31 (NSN # 6140-01-642-1007) models. For Quantities 1-11:$182.38 USD each Ready to order or need additional information on volume pricing? Click the "Get a Quote" button below to place your order.
