- Battery pack
- N-Series

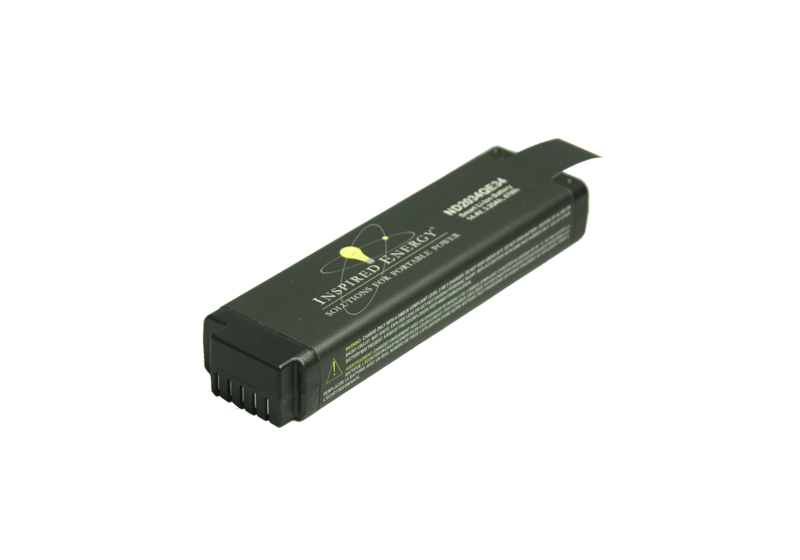

ND2034QE34
14.4 V 3.4 Ah smart lithium-ion battery pack.
- Voltage
- 14.4 V
- Capacity
- 3.4 Ah
- Energy
- 49 Wh
- Current
- 4 A
Specifications
| Nominal voltage | 14.4 V |
|---|---|
| Capacity | 3.4 Ah |
| Energy | 49 Wh |
| Maximum discharge current | 4 A |
| Rated power | 40 W |
| Chemistry | Lithium-ion |
| Cell | 4 x 18650 |
| Cell array | 4S1P |
| Shape | Rectangular |
| Dimensions (in) | 6" x 1.7" x 0.9" |
| Dimensions (mm) | 153 x 42 x 23 |
| Equivalent lithium content | 4 g |
| Fuel gauge | Always on 5-Bar LCD |
| IP rating | None |
| Mating connector | AMP P/N 5787422-1 or 5787446-1 |
| Cavity size | 24mm x 43mm cross-section |
Approvals
- UL
Chargers for this pack
- CH1000 Charger, charge + calibrate
- CH1000CAL Charger, charge + calibrate
- CH1010 2 bay, charge + calibrate
- CH5555 4 bay, charge + calibrate
- CH6555 6 bay, charge + calibrate
- CH7000 Charger, charge
- CH7171 Charger, charge
- Embedded Charger Boards Charger, charge
- CH1111 4 bay, charge + calibrate
- CH1111CAL Charger, charge + calibrate
- CH4000 Charger, charge
- CH4040 2 bay, charge
- CH4444 4 bay, charge
- CH5000 Charger, charge + calibrate
- CH5050 2 bay, charge + calibrate
- CH7070 2 bay, charge
- CH7100 Charger, charge
Accessories that fit
- 610005 Straight Connector - TE Part Number: 5787446-1
- 610007 90° Connector with Right-Hand Key - TE Part Number: 5787422-1
- 610018 90° Connector with Left-Hand Key - TE Part Number 5787428-1
- 629080 3' 5-Way cable
- 936188 Travel / dust cap for 203x range batteries
- ATA004N USB-to-SMBus smart battery interface with “Y” USB/Battery cable.
- BL237A Connector Mounting Circuit Board
- EB397A Connector Board with Ideal Diode Circuit.
Documents
- Datasheet /downloads/ND2034QE34/datasheet
- Declaration of conformance / testing summary /downloads/ND2034QE34/conformance
That address never changes. The revision is a field, not part of the filename, so issuing revision 1.4 replaces the file behind the same URL. Today the version is in the filename, so every revision 404s the previous link.
About this part
ND2034QE34 Smart Lithium-Ion Battery: The ND2034QE34 is the IEC, UL, CSA 62133-2 approved model of the ND2034HD34 ( 4S1P ) 14.4V , 4A smart lithium ion battery incorporates the standard features that designers and engineers have come to rely on for safety and function, such as SMbus , a pull tab for easy removal and on-pack LCD display for relative SOC indication. The Inspired Energy ND203x range of rechargeable smart Li-Ion battery packs are ideally designed for use in handheld devices with a variety of design and performance specifications: ND2034ED34 ( 4S1P ) 14.4V , 8A ND3034HD29 ( 4S1P ) 14.4V , 10A (Discharge -30°C to +60°C) ND2037HD34 (2S2P) 7.2V, 8A ND2037QE34 (2S2P) 7.2V, 8A . IEC, UL & CSA 62133-2 approved ND3037HD29 (2S2P) 7.2V, 10A (Discharge -30°C to +60°C). Features: • SMbus • Pull tab for easy removal • On-pack LCD Display for Relative SOC Indication Our expertise lies in creating customized battery hybrids that seamlessly integrate standard components to deliver optimal performance. Want to connect with our experts? Click here to contact our technical, engineering, and manufacturing teams in Newberry, Florida. ND2034QE34 Smart Li-ion battery customization options: • SHA-1 secure handshake • Custom label • Custom Firmware • Additional performance options for OEM applications N-series chargers are recommended for these batteries. Need IEC, UL, CSA 62133-2, KC, BIS PSE approved? Consider the ND2037QE34 smart battery The ND2034QE34 is our newest model, designed to outperform the previous ND2034HD29 & ND2034HD31 models. For Quantities 1-11:$123.24 USD each Ready to order or need additional information on volume pricing? Click the "Get a Quote" button below to place your order.
