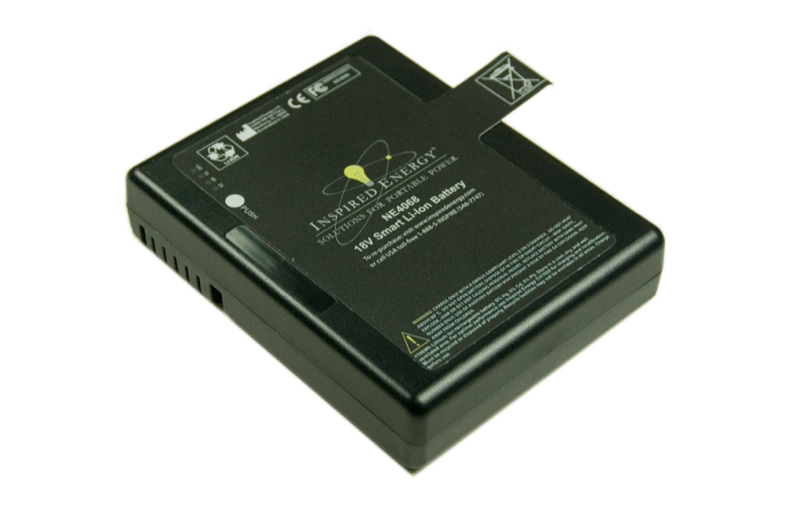

Battery pack
N-Series

NE4068QE50

18 V 5 Ah smart lithium-ion battery pack.

Voltage: 18 V
Capacity: 5 Ah
Energy: 90 Wh
Current: 8 A

Specifications

Specifications for NE4068QE50
Nominal voltage	18 V
Capacity	5 Ah
Energy	90 Wh
Maximum discharge current	8 A
Rated power	100 W
Chemistry	Lithium-ion
Cell	5 x 21700
Cell array	5S1P
Shape	Rectangular
Dimensions (in)	3.74" x 4.72" x 1.08"
Dimensions (mm)	94.89 x 119.85 x 27.26
Equivalent lithium content	8 g
Fuel gauge	Push button 4-bar LED
IP rating	None
Mating connector	5-Pin Standard Connector
Cavity size	27.8mm x 121.4mm cross section

Approvals

Chargers for this pack

Documents

That address never changes. The revision is a field, not part of the filename, so issuing revision 1.2 replaces the file behind the same URL. Today the version is in the filename, so every revision 404s the previous link.

About this part

NE4068QE50 Smart Lithium-Ion Battery: The 40xx range of rechargeable smart Li-Ion battery packs are designed for applications where size and runtime may be a consideration. The NE4068QE50 (5S1P) 18V smartbattery incorporates the standard features that designers and engineers have come to rely on for safety and performance, such as SMbus, a pull tab for easy removal and on-pack LED display for relative SOC indication. With IEC, UL, CSA 62133-2, BIS, KC & PSE, this battery is approved to meet the highest industry standards for safety and performance. The 4068 battery pack can perform at -20°C for low temperature applications, as the low internal impedance enables the cells to deliver good capacity and discharge current. (Note, in low temperature applications, we recommend testing the device at temperature to validate performance). Features: • SMbus • Pull tab for easy removal • On-pack LCD Display for Relative SOC Indication Our expertise lies in creating customized battery hybrids that seamlessly integrate standard components to deliver optimal performance. Want to connect with our experts? Click here to contact our technical, engineering, and manufacturing teams in Newberry, Florida. NE4068QE50 Smart Li-ion battery customization options: • SHA-1 secure handshake • Custom label • Custom Firmware • Additional performance options for OEM applications N-series chargers are recommended for these batteries. For Quantities 1-11:$192.48 USD each Ready to order or need additional information on volume pricing? Click the "Get a Quote" button below to place your order.
