- Battery pack
- N-Series

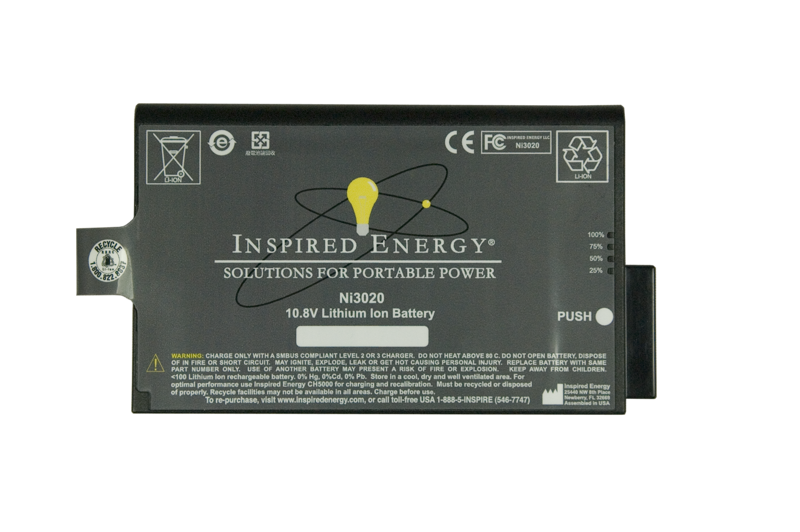

Ni3020QE29
10.8 V 8.1 Ah smart lithium-ion battery pack.
- Voltage
- 10.8 V
- Capacity
- 8.1 Ah
- Energy
- 87 Wh
- Current
- 10 A
Specifications
| Nominal voltage | 10.8 V |
|---|---|
| Capacity | 8.1 Ah |
| Energy | 87 Wh |
| Maximum discharge current | 10 A |
| Rated power | 75 W |
| Chemistry | Lithium-ion |
| Cell | 9 x 18650 |
| Cell array | 3S3P |
| Shape | Rectangular |
| Dimensions (in) | 5.9" x 3.5" x 0.8" |
| Dimensions (mm) | 149.1 x 89 x 20.3 |
| Equivalent lithium content | 8 g |
| Fuel gauge | Push button 4-bar LED |
| IP rating | None |
| Mating connector | 5-Pin Standard Connector |
| Cavity size | 21mm x 90 mm cross section |
Approvals
- UL
Chargers for this pack
Documents
- Datasheet /downloads/Ni3020QE29/datasheet
- Declaration of conformance / testing summary /downloads/Ni3020QE29/conformance
That address never changes. The revision is a field, not part of the filename, so issuing revision 1.1 replaces the file behind the same URL. Today the version is in the filename, so every revision 404s the previous link.
About this part
Ni3020QE29 Smart Lithium-Ion Battery: The Ni3020 is ideal for low temperature applications as the low internal impedance enables the cells to deliver good capacity and discharge current while offering IEC, UL, CSA 62133-2, BIS, KC & PSE to meet the highest industry standards for safety and performance. The Ni3020 can perform as low as -30°C (note, in cases of low temperature applications, we strongly recommend testing in your specific application). Also, with its 10A discharge capability, the Ni3020HD29 is ideally suited as a small “hot-swap” battery to hold up the device for a short period while the main battery is charged. Features: • SMbus • Pull tab for easy removal • On-pack LCD Display for Relative SOC Indication Our expertise lies in creating customized battery hybrids that seamlessly integrate standard components to deliver optimal performance. Want to connect with our experts? Click here to contact our technical, engineering, and manufacturing teams in Newberry, Florida. Ni3020QE29 Smart Li-ion battery customization options: • SHA-1 secure handshake • Custom label • Custom Firmware • Additional performance options for OEM applications N-series chargers are recommended for these batteries. Looking for something with a smaller format? We recommend the Ni2020HD29 smart battery The Ni3020QE29 is our newest model, designed to outperform the previous Ni3020HD29 and other models such as Ni2020ED29, Ni3020HD25, 26 & 30. For Quantities 1-11:$200.28 USD each Ready to order or need additional information on volume pricing? Click the "Get a Quote" button below to place your order.
