- Battery pack
- Nickel Metal Hydride

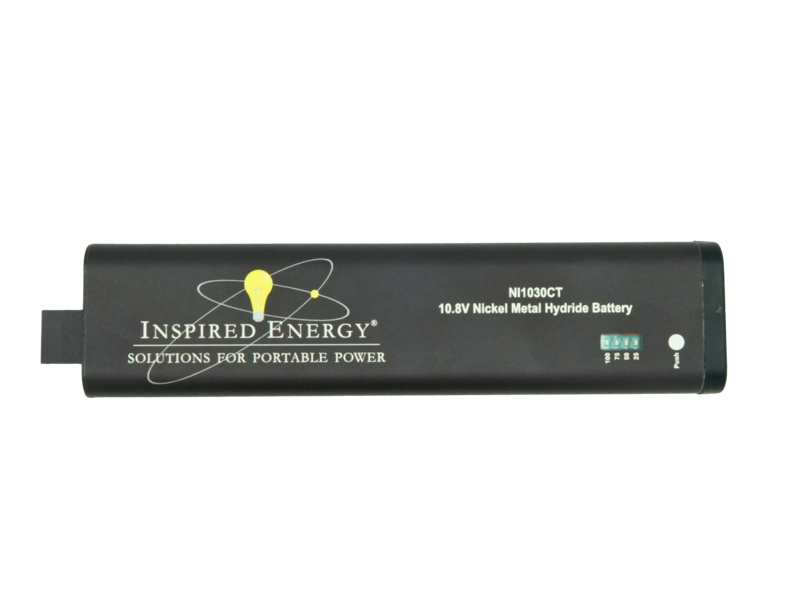

Ni1030CT
10.8 V 3.9 Ah NiMH battery pack.
- Voltage
- 10.8 V
- Capacity
- 3.9 Ah
- Energy
- 42 Wh
- Current
- 3 A
Specifications
| Nominal voltage | 10.8 V |
|---|---|
| Capacity | 3.9 Ah |
| Energy | 42 Wh |
| Maximum discharge current | 3 A |
| Chemistry | Nickel metal hydride |
| Shape | Rectangular |
| Dimensions (in) | 8.5" x 2.1" x 0.8" |
| Dimensions (mm) | 215 x 52.8 x 19.3 |
| IP rating | None |
Stock numbers
| NSN (AMP 787415-1) | 6130-01-485-8709 |
|---|
Currently a sentence. On the live site these numbers sit inside the product description, where nothing can index or filter them. Defence buyers search by NSN.
Chargers for this pack
Accessories that fit
- 610005 Straight Connector - TE Part Number: 5787446-1
- 610007 90° Connector with Right-Hand Key - TE Part Number: 5787422-1
- 610018 90° Connector with Left-Hand Key - TE Part Number 5787428-1
- ATA004N USB-to-SMBus smart battery interface with “Y” USB/Battery cable.
- BL237A Connector Mounting Circuit Board
- EB397A Connector Board with Ideal Diode Circuit.
Documents
That address never changes. The revision is a field, not part of the filename, so issuing revision 2.4 replaces the file behind the same URL. Today the version is in the filename, so every revision 404s the previous link.
About this part
The NI1030CT is a rechargeable smart Nickel Metal Hydride battery pack built for OEM equipment that needs reliable, communicative portable power. Nine 4/3A cells in a 9-series configuration deliver 10.8V nominal and 3850mAh typical capacity, with a minimum of 3000mAh at a 3A discharge rate. Fully SMBus and SBDS Revision 1.0 compliant, the pack manages its own charging by requesting the appropriate voltage and current from any SMBus Level II or Level III smart charger. An integrated fuel gauge reports state of charge, remaining capacity, run time, cycle count, and temperature directly to the host, applying continuous compensation for cell non-linearity and environmental conditions so runtime predictions stay meaningful over the life of the pack. Four on-pack LEDs with push-button activation give operators an at-a-glance capacity reading without powering up the host device. Key specifications Nominal voltage: 10.8V Typical capacity: 3850mAh (3500mAh minimum at 0.2C) Chemistry: Nickel Metal Hydride, 9S configuration Maximum continuous discharge: 3A Discharge temperature range: 0°C to +50°C Charge temperature range: 0°C to +40°C at 3A rate Communication: SMBus / SBDS Rev 1.0 Weight: 510g ±20g Dimensions: 214.50mm × 52.50mm × 19.00mm (max, including label) Mating connector: AMP 787415-1 NSN 6130-01-485-8709 To place an order or for pricing, please contact us.
