- Battery pack
- N-Series

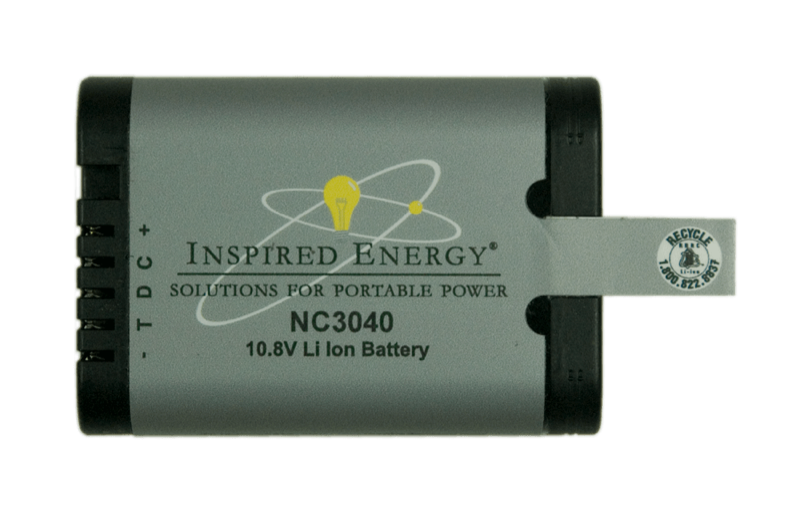

NC3040HD30
10.8 V 3 Ah smart lithium-ion battery pack.
- Voltage
- 10.8 V
- Capacity
- 3 Ah
- Energy
- 32 Wh
- Current
- 8 A
Specifications
| Nominal voltage | 10.8 V |
|---|---|
| Capacity | 3 Ah |
| Energy | 32 Wh |
| Maximum discharge current | 8 A |
| Rated power | 60 W |
| Chemistry | Lithium-ion |
| Cell | x 18650 |
| Dimensions (in) | 3.4" x 2.4" x 0.9" |
| Dimensions (mm) | 85.1 x 59.02 x 22.4 |
| Equivalent lithium content | 3 g |
| Fuel gauge | Always on 5-Bar LCD |
| IP rating | None |
| Mating connector | AMP P/N 5787422-1 or 5787446-1 |
| Cavity size | 23.5mm x 60mm cross section |
Chargers for this pack
Accessories that fit
Documents
- Datasheet /downloads/NC3040HD30/datasheet
- Declaration of conformance / testing summary /downloads/NC3040HD30/conformance
That address never changes. The revision is a field, not part of the filename, so issuing revision 1.1 replaces the file behind the same URL. Today the version is in the filename, so every revision 404s the previous link.
About this part
The NC3040 is ideal for low temperature applications as the low internal impedance enables the cells to deliver good capacity and discharge current. The NC3040 can perform as low as -10C and the has tested as low as -30C. (Note, in cases of low temperature applications, we strongly recommend testing in your specific application). Also, with its 8A discharge capability, the NC3040 is ideally suited as a small hot-swap battery to hold up the device for a short period while the main battery is charged. These smart Li-ion batteries can be customized to meet unique specifications. Custom label, custom firmware and some performance options are available. Creating custom-hybrids of standard batteries is a part of Inspired Energy’s established expertise. Qty 1-11, $129.98 USD ea. To place an order or for additional quantity pricing, please contact us.
