  • Battery pack
  • N-Series

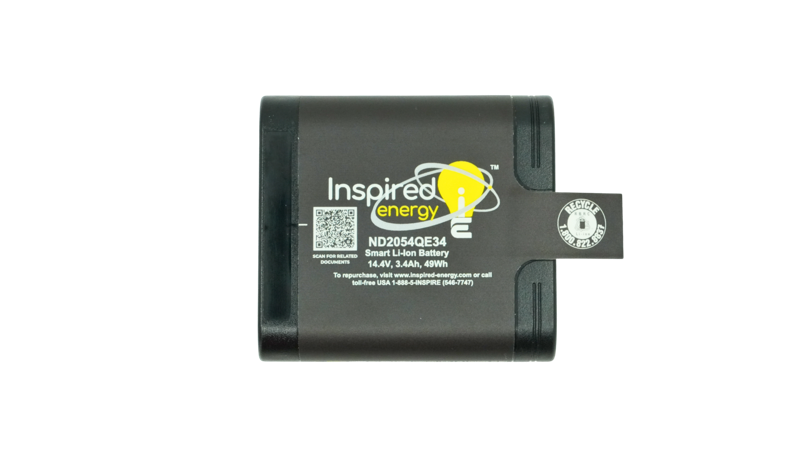

ND2054QE34

14.4V 3.4Ah smart lithium-ion pack, low-temperature capable.

Voltage
14.4 V
Capacity
3.4 Ah
Energy
49 Wh
Current
4 A

Specifications

Nominal voltage14.4 V
Capacity3.4 Ah
Energy49 Wh
Maximum discharge current4 A
Rated power40 W
ChemistryLithium-ion
Cell4 x 18650
Cell array4S1P
ShapeSquare
Dimensions (in)3.4" x 3.1" x 0.91"
Dimensions (mm)86.4 x 78.7 x 23.02
Equivalent lithium content4 g
CommunicationsSMBUS
Fuel gaugeAlways on 5-Bar LCD
IP ratingNone
Mating connectorAMP P/N 5787422-1 or 5787446-1
Cavity size23.5mm x 80mm cross section
Optional belt packMC20501A, E, U

Approvals

  • IEC
  • UL

Chargers for this pack

Accessories that fit

Documents

That address never changes. The revision is a field, not part of the filename, so issuing revision 1.4000000000000001 replaces the file behind the same URL. Today the version is in the filename, so every revision 404s the previous link.

Typical applications

  • Medical
  • Military
  • Robotics

About this part

Low internal impedance lets the cells hold capacity and discharge current at low temperature, which is why this one shows up in field and transport applications rather than benchtop instruments.
