- Battery pack
- N-Series

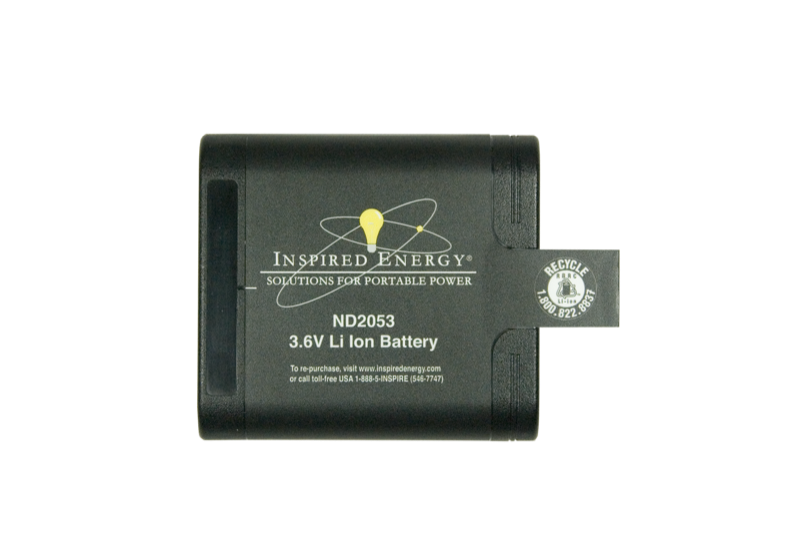

ND2053ED34
3.6 V 13.6 Ah smart lithium-ion battery pack.
- Voltage
- 3.6 V
- Capacity
- 13.6 Ah
- Energy
- 49 Wh
- Current
- 10 A
Specifications
| Nominal voltage | 3.6 V |
|---|---|
| Capacity | 13.6 Ah |
| Energy | 49 Wh |
| Maximum discharge current | 10 A |
| Rated power | 25 W |
| Chemistry | Lithium-ion |
| Cell | 4 x 18650 |
| Cell array | 1S4P |
| Shape | Square |
| Dimensions (in) | 3.4" x 3.1" x 0.91" |
| Dimensions (mm) | 86.4 x 78.7 x 23.02 |
| Equivalent lithium content | 4 g |
| Fuel gauge | Always on 5-Bar LCD |
| IP rating | None |
| Mating connector | AMP P/N 5787422-1 or 5787446-1 |
| Cavity size | 23.5mm x 80mm cross section |
Chargers for this pack
- CH1000 Charger, charge + calibrate
- CH4000 Charger, charge
- CH4040 2 bay, charge
- CH5000 Charger, charge + calibrate
- CH5050 2 bay, charge + calibrate
- CH5555 4 bay, charge + calibrate
- CH6555 6 bay, charge + calibrate
- CH7000 Charger, charge
- CR12 12 bay, charge
- CH1000CAL Charger, charge + calibrate
- CH1010 2 bay, charge + calibrate
- CH1111 4 bay, charge + calibrate
- CH1111CAL Charger, charge + calibrate
- CH4444 4 bay, charge
- CH7070 2 bay, charge
- CH7100 Charger, charge
- CH7171 Charger, charge
Accessories that fit
- 629028 3', 5-conductor straight cable for 204x, 205x, 304x & 305x range batteries.
- 629030 3', 2-Conductor coiled cable
- 936186 Travel / dust cap for 205x range batteries
- 936192 Battery Mounting Guide Block for 203x, 204x, 205x batteries Sold individually Circuit board and mounting hardware not included.
- MC20501 Belt pack holster for NDx05x batteries with integrated charger.
- MC20502 Belt pack holster for NDx05x batteries with integrated charger.
- MC20505 Belt pack holster for NDx05x batteries with integrated charger.
- MP20501 Belt pack holster for NDx05x batteries.
- MP20502 Belt pack holster for NDx05x batteries.
- MP20503 Belt pack holster for NDx05x batteries.
- 610005 Straight Connector - TE Part Number: 5787446-1
- 610007 90° Connector with Right-Hand Key - TE Part Number: 5787422-1
- 610018 90° Connector with Left-Hand Key - TE Part Number 5787428-1
- ATA004N USB-to-SMBus smart battery interface with “Y” USB/Battery cable.
- BL237A Connector Mounting Circuit Board
- EB397A Connector Board with Ideal Diode Circuit.
Documents
- Datasheet /downloads/ND2053ED34/datasheet
- Declaration of conformance / testing summary /downloads/ND2053ED34/conformance
That address never changes. The revision is a field, not part of the filename, so issuing revision 2.1 replaces the file behind the same URL. Today the version is in the filename, so every revision 404s the previous link.
About this part
ND2053ED34 Smart Lithium-Ion Battery: The ND2053 is aimed at low voltage applications requiring extremely high capacity. It also offers the ability to deliver high discharge currents making it unique for embedded applications. The ND2053 is capable for low temperature applications as it can perform as low as -10C. (Note, in cases of low temperature applications, we strongly recommend testing in your specific application). Features: • SMbus • Pull tab for easy removal • On-pack LCD Display for Relative SOC Indication Our expertise lies in creating customized battery hybrids that seamlessly integrate standard components to deliver optimal performance. Want to connect with our experts? Click here to contact our technical, engineering, and manufacturing teams in Newberry, Florida. ND2053ED34 Smart Li-ion battery customization options: • SHA-1 secure handshake • Custom label • Custom Firmware • Additional performance options for OEM applications N-series chargers are recommended for these batteries. For Quantities 1-11:$127.85 USD each Ready to order or need additional information on volume pricing? Click the "Get a Quote" button below to place your order.
