- Battery pack
- N-Series

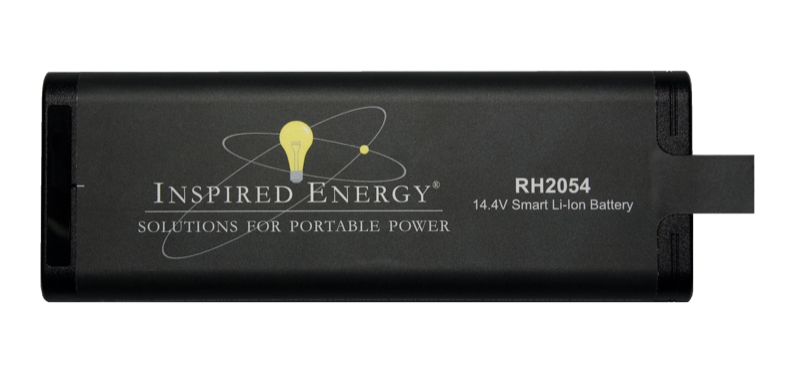

RH2054HD34
14.4 V 6.8 Ah smart lithium-ion battery pack.
- Voltage
- 14.4 V
- Capacity
- 6.8 Ah
- Energy
- 98 Wh
- Current
- 8 A
Specifications
| Nominal voltage | 14.4 V |
|---|---|
| Capacity | 6.8 Ah |
| Energy | 98 Wh |
| Maximum discharge current | 8 A |
| Rated power | 80 W |
| Chemistry | Lithium-ion |
| Cell | 8 x 18650 |
| Cell array | 4S2P |
| Shape | Rectangular |
| Dimensions (in) | 8.5" x 3.1" x 0.9" |
| Dimensions (mm) | 215.9 x 78.7 x 22.86 |
| Fuel gauge | Always on 5-Bar LCD |
| IP rating | None |
| Mating connector | AMP P/N 5787422-1 or 5787446-1 |
| Cavity size | 23.5mm x 80mm cross section |
Chargers for this pack
- CH1000 Charger, charge + calibrate
- CH4000 Charger, charge
- CH4040 2 bay, charge
- CH4444 4 bay, charge
- CH5000 Charger, charge + calibrate
- CH5050 2 bay, charge + calibrate
- CH5555 4 bay, charge + calibrate
- CH6555 6 bay, charge + calibrate
- CH7000 Charger, charge
- CR12 12 bay, charge
- Embedded Charger Boards Charger, charge
- CH1000CAL Charger, charge + calibrate
- CH1010 2 bay, charge + calibrate
- CH1111 4 bay, charge + calibrate
- CH1111CAL Charger, charge + calibrate
- CH7070 2 bay, charge
- CH7100 Charger, charge
- CH7171 Charger, charge
Accessories that fit
- 610005 Straight Connector - TE Part Number: 5787446-1
- 610007 90° Connector with Right-Hand Key - TE Part Number: 5787422-1
- 610018 90° Connector with Left-Hand Key - TE Part Number 5787428-1
- 629030 3', 2-Conductor coiled cable
- 936186 Travel / dust cap for 205x range batteries
- 936192 Battery Mounting Guide Block for 203x, 204x, 205x batteries Sold individually Circuit board and mounting hardware not included.
- ATA004N USB-to-SMBus smart battery interface with “Y” USB/Battery cable.
- BL237A Connector Mounting Circuit Board
- EB397A Connector Board with Ideal Diode Circuit.
Documents
- Datasheet /downloads/RH2054HD34/datasheet
- Declaration of conformance / testing summary /downloads/RH2054HD34/conformance
That address never changes. The revision is a field, not part of the filename, so issuing revision 1.1 replaces the file behind the same URL. Today the version is in the filename, so every revision 404s the previous link.
About this part
At 98Wh the latest 8-cell NH2054 model has equal stored energy as the RH2054 and NL2054 models within a smaller package. We recommend the NH2054 models for any new designs. The 8-cell RH2054 model has greater stored energy than the 12-cell NL2054 model in the same package and is 30% lighter. The RH2054 is capable for low temperature applications as it can perform as low as -10°C. (Note, in cases of low temperature applications, we strongly recommend testing in your specific application). Also, with its 8A discharge capability, the RH2054 is ideally suited as a small “hot-swap” battery to hold up the device for a short period while the main battery is charged. These smart Li-ion batteries can be customized to meet unique specifications. Custom label, custom firmware and some performance options are available. Creating custom-hybrids of standard batteries is a part of Inspired Energy’s established expertise. Qty 1-11, $182.38 USD ea. To place an order or for additional quantity pricing, please contact us.
