- Battery pack
- N-Series

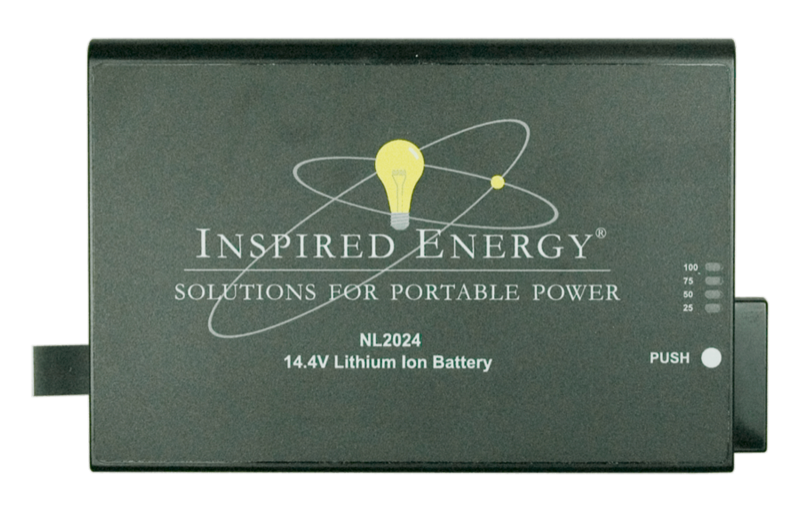

NL2024ED22
14.4 V 6.6 Ah smart lithium-ion battery pack.
- Voltage
- 14.4 V
- Capacity
- 6.6 Ah
- Energy
- 95 Wh
- Current
- 10 A
Specifications
| Nominal voltage | 14.4 V |
|---|---|
| Capacity | 6.6 Ah |
| Energy | 95 Wh |
| Maximum discharge current | 10 A |
| Rated power | 100 W |
| Chemistry | Lithium-ion |
| Cell | 12 x 18650 |
| Cell array | 4S3P |
| Shape | Rectangular |
| Dimensions (in) | 6.6" x 4.3" x 0.9" |
| Dimensions (mm) | 167.7 x 109.22 x 22.86 |
| Equivalent lithium content | 8 g |
| Fuel gauge | Push button 4-bar LED |
| IP rating | None |
| Mating connector | AMP P/N 5787422-1 or 5787446-1 |
| Cavity size | 22.5mm x 109mm cross section |
| Optional belt pack | BPXX or BC2BVX |
Chargers for this pack
- CH1000 Charger, charge + calibrate
- CH4000 Charger, charge
- CH4040 2 bay, charge
- CH5000 Charger, charge + calibrate
- CH5050 2 bay, charge + calibrate
- CH5555 4 bay, charge + calibrate
- CH6555 6 bay, charge + calibrate
- CH7000 Charger, charge
- CR12 12 bay, charge
- CH4444 4 bay, charge
- Embedded Charger Boards Charger, charge
Accessories that fit
- 610005 Straight Connector - TE Part Number: 5787446-1
- 610007 90° Connector with Right-Hand Key - TE Part Number: 5787422-1
- 610018 90° Connector with Left-Hand Key - TE Part Number 5787428-1
- 629010 3', 5-conductor straight cable
- 629011 3', 2-conductor, curly cable
- 629041 2-conductor, straight cable with cigarette-lighter socket
- 936143 Battery Mounting Guide Block for 202x batteries Sold individually Circuit board and mounting hardware not included.
- 936187 Travel / dust cap for 202x range batteries
- ATA004N USB-to-SMBus smart battery interface with “Y” USB/Battery cable.
- BL237A Connector Mounting Circuit Board
- EB397A Connector Board with Ideal Diode Circuit.
- 629035 Overmolded 5-blade battery connector for 202x, 102x & 302x designs with 2-conductor, 3' coiled cable to 5.5x2.5mm, 90° coaxial power connector.
Documents
- Datasheet /downloads/NL2024ED22/datasheet
- Declaration of conformance / testing summary /downloads/NL2024ED22/conformance
That address never changes. The revision is a field, not part of the filename, so issuing revision 3.3 replaces the file behind the same URL. Today the version is in the filename, so every revision 404s the previous link.
About this part
At 98Wh the latest 8-cell NH2054 or NH2034 models have greater stored energy compared to this 12-cell model in a package which is 25% smaller and lighter. We recommend using these models for new designs. An alternative for existing designs is the RH2024 model. This model uses the same plastic case but only fills it with 8 cells creating a 30% lighter option. The NL2024 and RH2024 are capable for low temperature applications as it can perform as low as -10°C. (Note, in cases of low temperature applications, we strongly recommend testing in your specific application). Also, with its 8A/10A discharge capability, the NL2024 and RH2024 are ideally suited as a small “hot-swap” battery to hold up the device for a short period while the main battery is charged. These smart Li-ion batteries can be customized to meet unique specifications. Custom label, custom firmware and some performance options are available. Creating custom-hybrids of standard batteries is a part of Inspired Energy’s established expertise. Qty 1-11, $279.30 USD ea. To place an order or for additional quantity pricing, please contact us.
