- Battery pack
- N-Series
NC2560A22

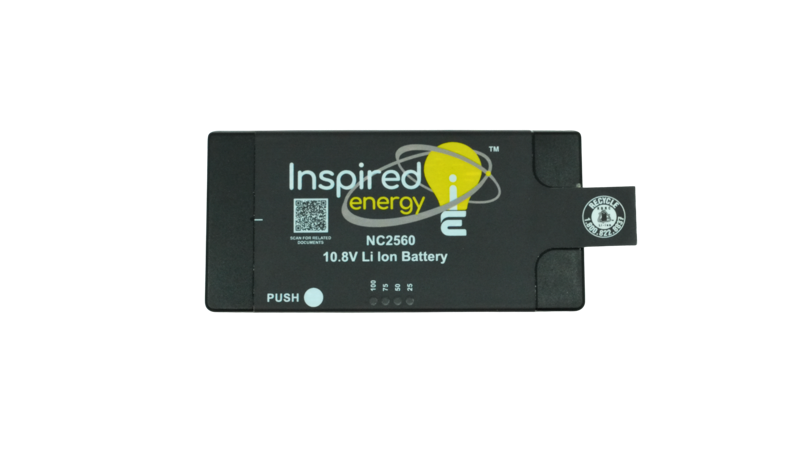

10.8 V 2.2 Ah smart lithium-ion battery pack.
- Voltage
- 10.8 V
- Capacity
- 2.2 Ah
- Energy
- 24 Wh
- Current
- 2 A
Specifications
| Nominal voltage | 10.8 V |
|---|---|
| Capacity | 2.2 Ah |
| Energy | 24 Wh |
| Maximum discharge current | 2 A |
| Rated power | 15 W |
| Chemistry | Lithium-ion |
| Cell | x 18650 |
| Shape | Rectangular |
| Dimensions (in) | 4.75" x 2.4" x 0.64" |
| Dimensions (mm) | 120 x 60 x 16.13 |
| Equivalent lithium content | 3 g |
| Fuel gauge | Always on 5-Bar LCD |
| IP rating | None |
| Mating connector | AMP P/N 5787422-1 or 5787446-1 |
| Cavity size | 17mm x 61mm cross section |
Approvals
- UL
Chargers for this pack
Accessories that fit
- 610005 Straight Connector - TE Part Number: 5787446-1
- 610007 90° Connector with Right-Hand Key - TE Part Number: 5787422-1
- 610018 90° Connector with Left-Hand Key - TE Part Number 5787428-1
- ATA004N USB-to-SMBus smart battery interface with “Y” USB/Battery cable.
- BL237A Connector Mounting Circuit Board
- EB397A Connector Board with Ideal Diode Circuit.
Documents
- Datasheet /downloads/NC2560A22/datasheet
- Declaration of conformance / testing summary /downloads/NC2560A22/conformance
That address never changes. The revision is a field, not part of the filename, so issuing revision 2.1 replaces the file behind the same URL. Today the version is in the filename, so every revision 404s the previous link.
About this part
NC2560A22 Smart Lithium-Ion Battery: The Inspired Energy NC2560A22 rechargeable smart Li-Ion battery packs utilize 103450 cells and are designed for applications where size may be a consideration, making it ideal for handheld devices. The NC2560A22 ( 3S1P ) 10.8V smart lithium ion battery incorporates the standard features that designers and engineers have come to rely on for safety and function, such as SMbus, a pull tab for easy removal and on-pack LED display for relative SOC indication. The NC 2560 battery pack can perform at -20°C for low temperature applications, as the low internal impedance enable the cells to deliver good capacity and discharge current. (Note, in low temperature applications, we recommend testing the device at temperature to validate performance). Features: • SMbus • Pull tab for easy removal • On-pack LCD Display for Relative SOC Indication Our expertise lies in creating customized battery hybrids that seamlessly integrate standard components to deliver optimal performance. Want to connect with our experts? Click here to contact our technical, engineering, and manufacturing teams in Newberry, Florida. NC2560A22 Smart Li-ion battery customization options: • SHA-1 secure handshake • Custom label • Custom Firmware • Additional performance options for OEM applications N-series chargers are recommended for these batteries. Need IEC, UL, CSA 62133-2, KC, BIS PSE approved? Consider the NC2040QE34 smart battery For Quantities 1-11:$107.41 USD each Ready to order or need additional information on volume pricing? Click the "Get a Quote" button below to place your order.
