- Battery pack
- N-Series
NH3054HD34

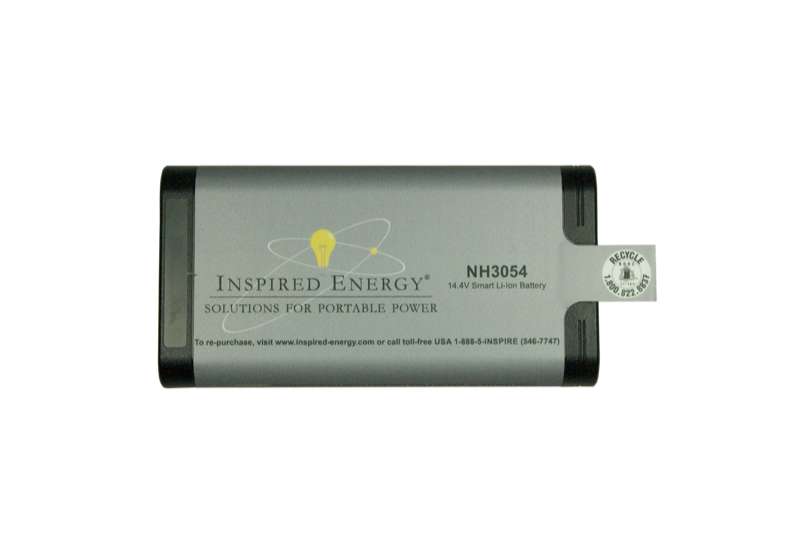

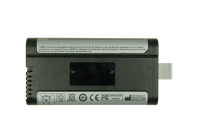

14.4 V 6.8 Ah smart lithium-ion battery pack.
- Voltage
- 14.4 V
- Capacity
- 6.8 Ah
- Energy
- 98 Wh
- Current
- 10 A
Specifications
| Nominal voltage | 14.4 V |
|---|---|
| Capacity | 6.8 Ah |
| Energy | 98 Wh |
| Maximum discharge current | 10 A |
| Rated power | 100 W |
| Chemistry | Lithium-ion |
| Cell | 8 x 18650 |
| Cell array | 4S2P |
| Shape | Rectangular |
| Dimensions (in) | 6" x 3.1" x 0.9" |
| Dimensions (mm) | 153 x 78.7 x 23 |
| Equivalent lithium content | 8 g |
| Fuel gauge | Always on 5-Bar LCD |
| IP rating | None |
| Mating connector | AMP P/N 5787422-1 or 5787446-1 |
| Cavity size | 23.5mm x 80mm cross section |
| Optional belt pack | MPL205X or MCL205X |
Approvals
- UL
Chargers for this pack
- CH1000 Charger, charge + calibrate
- CH4000 Charger, charge
- CH4040 2 bay, charge
- CH4444 4 bay, charge
- CH5000 Charger, charge + calibrate
- CH5050 2 bay, charge + calibrate
- CH5555 4 bay, charge + calibrate
- CH6555 6 bay, charge + calibrate
- CH7000 Charger, charge
- CR12 12 bay, charge
- CH1111 4 bay, charge + calibrate
- CH1000CAL Charger, charge + calibrate
- CH1010 2 bay, charge + calibrate
- CH1111CAL Charger, charge + calibrate
- CH7070 2 bay, charge
- CH7100 Charger, charge
- CH7171 Charger, charge
Accessories that fit
- 610005 Straight Connector - TE Part Number: 5787446-1
- 610007 90° Connector with Right-Hand Key - TE Part Number: 5787422-1
- 610018 90° Connector with Left-Hand Key - TE Part Number 5787428-1
- 629030 3', 2-Conductor coiled cable
- 936186 Travel / dust cap for 205x range batteries
- 936192 Battery Mounting Guide Block for 203x, 204x, 205x batteries Sold individually Circuit board and mounting hardware not included.
- ATA004N USB-to-SMBus smart battery interface with “Y” USB/Battery cable.
- BL237A Connector Mounting Circuit Board
- EB397A Connector Board with Ideal Diode Circuit.
- MCL205VC Car Charger No description published.
- 629028 3', 5-conductor straight cable for 204x, 205x, 304x & 305x range batteries.
Documents
- Datasheet /downloads/NH3054HD34/datasheet
- Declaration of conformance / testing summary /downloads/NH3054HD34/conformance
That address never changes. The revision is a field, not part of the filename, so issuing revision 1.3 replaces the file behind the same URL. Today the version is in the filename, so every revision 404s the previous link.
About this part
NH3054HD34 Smart Lithium-Ion Battery: The NH3054 is ideal for low temperature applications as the low internal impedance enables the cells to deliver good capacity and discharge current. The NH3054 can perform as low as -10°C (note, in low temperature applications, we recommend testing the device at temperature to validate performance). Also, with its 10A discharge capability, the NH3054 is ideally suited as a small “hot-swap” battery to hold up the device for a short period while the main battery is charged. Features: • SMbus • Pull tab for easy removal • On-pack LCD Display for Relative SOC Indication Our expertise lies in creating customized battery hybrids that seamlessly integrate standard components to deliver optimal performance. Want to connect with our experts? Click here to contact our technical, engineering, and manufacturing teams in Newberry, Florida. NH3054HD34 Smart Li-ion battery customization options: • SHA-1 secure handshake • Custom label • Custom Firmware • Additional performance options for OEM applications Need IEC, UL, CSA 62133-2, KC, BIS PSE approved? Consider the NH3054QE34 smart battery Looking for something with a higher discharge rate and lower temperature option? We recommend the NH3057QE34 smart battery The NH3054HD34 is our newest model, designed to outperform the previous NH3054HD29 and NH3054HD31 models. For Quantities 1-11:$189.65 USD each Ready to order or need additional information on volume pricing? Click the "Get a Quote" button below to place your order.
