- Battery pack
- N-Series

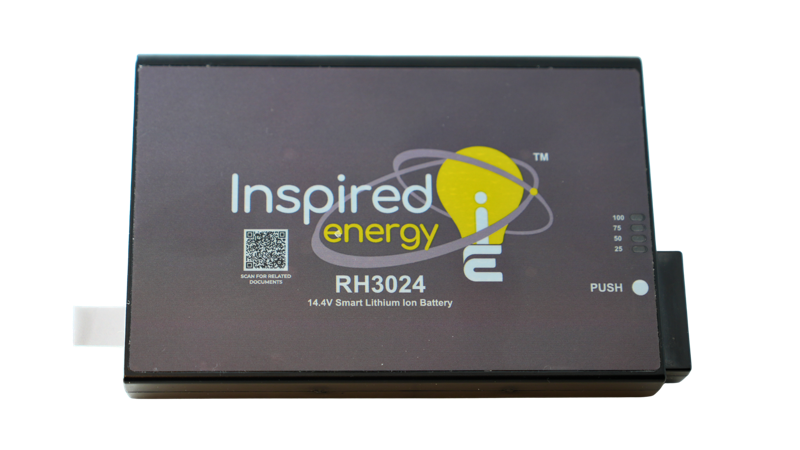

RH3024QE34
14.4 V 6.8 Ah smart lithium-ion battery pack.
- Voltage
- 14.4 V
- Capacity
- 6.8 Ah
- Energy
- 98 Wh
- Current
- 10 A
Specifications
| Nominal voltage | 14.4 V |
|---|---|
| Capacity | 6.8 Ah |
| Energy | 98 Wh |
| Maximum discharge current | 10 A |
| Rated power | 100 W |
| Chemistry | Lithium-ion |
| Cell | 8 x 18650 |
| Cell array | 4S2P |
| Shape | Rectangular |
| Dimensions (in) | 6.6" x 4.3" x 0.9" |
| Dimensions (mm) | 167.7 x 109.22 x 22.86 |
| Equivalent lithium content | 8 g |
| Fuel gauge | Push button 4-bar LED |
| IP rating | None |
| Mating connector | 5-Pin Standard Connector |
| Cavity size | 22.5mm x 109mm cross section |
Approvals
- UL
Chargers for this pack
Documents
- Datasheet /downloads/RH3024QE34/datasheet
- Declaration of conformance / testing summary /downloads/RH3024QE34/conformance
That address never changes. The revision is a field, not part of the filename, so issuing revision 1.2 replaces the file behind the same URL. Today the version is in the filename, so every revision 404s the previous link.
About this part
Capable of higher discharge rates than RH2024 smart battery packs, the RH3024QE34 battery pack incorporates the standard features that designers and engineers have come to rely on for safety and function, such as SMbus , a pull tab for easy removal and on-pack LED display for relative SOC indication. This QE model battery is IEC, UL, CSA 62133-2 & BIS approved The RH3024 ( 4S2P ) 14.4V lithium ion pack has tested as low as -20C and is ideally designed for use in portable devices. (Note, in cases of low temperature applications, we strongly recommend testing in your specific application). With 10A discharge capability, RH3024 batteries are ideally suited as a small hot-swap battery to hold up the device for a short period while the main battery is charged. CH-series chargers are recommended for these batteries. RH 3024 smart liIon batteries can be customized to meet unique specifications. SHA-1 secure handshake, custom label, custom firmware and additional performance options are available for OEM applications. Creating custom-hybrids of standard batteries is a part of Inspired Energy’s established expertise. You are welcome to work directly with our technical, engineering and manufacturing staff here at our headquarters in Newberry, Florida. We currently ship our products to over 96 countries. This email address is being protected from spambots. You need JavaScript enabled to view it. For new applications, please review the NH3054 models. The RH3024QE34 has been updated as a replacement for the previous NL2024ED & NL2024ED22 models.
