- Battery pack
- N-Series

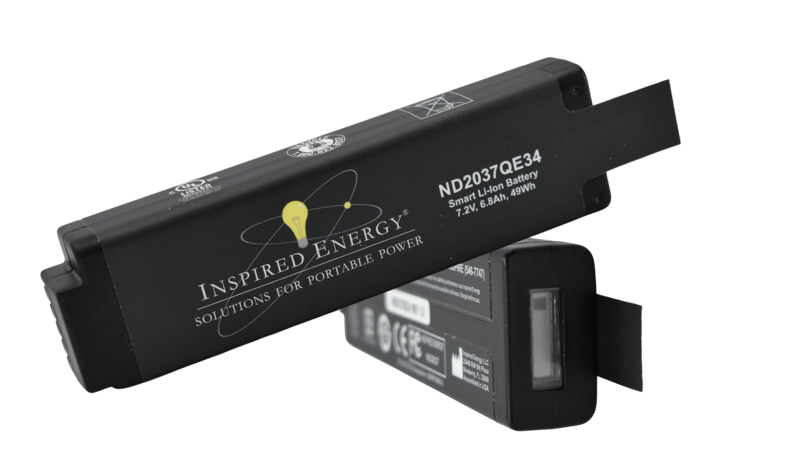

ND2037QE34
7.2 V 6.8 Ah smart lithium-ion battery pack.
- Voltage
- 7.2 V
- Capacity
- 6.8 Ah
- Energy
- 49 Wh
- Current
- 8 A
Specifications
| Nominal voltage | 7.2 V |
|---|---|
| Capacity | 6.8 Ah |
| Energy | 49 Wh |
| Maximum discharge current | 8 A |
| Rated power | 40 W |
| Chemistry | Lithium-ion |
| Cell | 4 x 18650 |
| Cell array | 2S2P |
| Shape | Rectangular |
| Dimensions (in) | 6" x 1.7" x 0.9" |
| Dimensions (mm) | 153 x 42 x 23 |
| IP rating | None |
| Mating connector | AMP P/N 5787422-1 or 5787446-1 |
Approvals
- UL
Chargers for this pack
- CH1000 Charger, charge + calibrate
- CH1000CAL Charger, charge + calibrate
- CH1010 2 bay, charge + calibrate
- CH1111 4 bay, charge + calibrate
- CH1111CAL Charger, charge + calibrate
- CH4000 Charger, charge
- CH4040 2 bay, charge
- CH4444 4 bay, charge
- CH5000 Charger, charge + calibrate
- CH5050 2 bay, charge + calibrate
- CH5555 4 bay, charge + calibrate
- CH6555 6 bay, charge + calibrate
- CH7000 Charger, charge
- CH7070 2 bay, charge
- CH7100 Charger, charge
- CH7171 Charger, charge
Accessories that fit
- 610005 Straight Connector - TE Part Number: 5787446-1
- 610007 90° Connector with Right-Hand Key - TE Part Number: 5787422-1
- 610018 90° Connector with Left-Hand Key - TE Part Number 5787428-1
- 629080 3' 5-Way cable
- 936188 Travel / dust cap for 203x range batteries
- ATA004N USB-to-SMBus smart battery interface with “Y” USB/Battery cable.
- BL237A Connector Mounting Circuit Board
- EB397A Connector Board with Ideal Diode Circuit.
Documents
That address never changes. The revision is a field, not part of the filename, so issuing revision 2.1 replaces the file behind the same URL. Today the version is in the filename, so every revision 404s the previous link.
About this part
ND2037QE34 Smart Lithium-Ion Battery: The ND2037QE34 is a high-performance 7.2V smart lithium-ion battery that delivers exceptional power and reliability. Designed for use in compact and handheld devices, this battery is IEC, UL, CSA 62133-2, BIS, KC & PSE approved to meet the highest industry standards for safety and performance. Inspired Energy's 2037 rechargeable smart lithium-ion battery packs can perform at -20°C for low temperature applications. Features: • SMbus • Pull tab for easy removal • On-pack LCD Display for Relative SOC Indication Our expertise lies in creating customized battery hybrids that seamlessly integrate standard components to deliver optimal performance. Want to connect with our experts? Click here to contact our technical, engineering, and manufacturing teams in Newberry, Florida. ND2037QE34 Smart Li-ion battery customization options: • SHA-1 secure handshake • Custom label • Custom Firmware • Additional performance options for OEM applications N-series chargers are recommended for these batteries. Looking for something with a higher discharge rate and lower temperature option? We recommend the ND3037HD29 smart battery The ND2037QE34 is our newest model, designed to outperform the previous ND2034HD29 & ND2034HD31 models. For Quantities 1-11:$123.24 USD each Ready to order or need additional information on volume pricing? Click the "Get a Quote" button below to place your order.
