- Battery pack
- N-Series

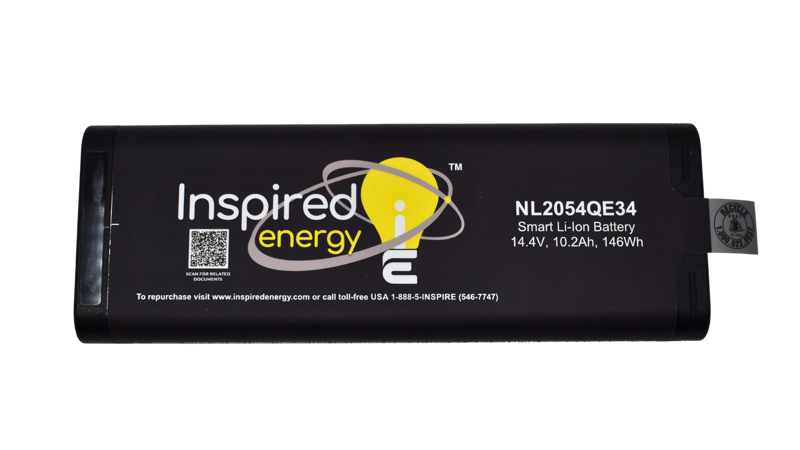

NL2054QE34
14.4 V 10.2 Ah smart lithium-ion battery pack.
- Voltage
- 14.4 V
- Capacity
- 10.2 Ah
- Energy
- 147 Wh
- Current
- 8 A
Specifications
| Nominal voltage | 14.4 V |
|---|---|
| Capacity | 10.2 Ah |
| Energy | 147 Wh |
| Maximum discharge current | 8 A |
| Rated power | 80 W |
| Chemistry | Lithium-ion |
| Cell | 12 x 18650 |
| Cell array | 4S3P |
| Shape | Rectangular |
| Dimensions (in) | 8.5" x 3.1" x 0.9" |
| Dimensions (mm) | 215.9 x 78.7 x 22.86 |
| Equivalent lithium content | 12 g |
| Fuel gauge | Always on 5-Bar LCD |
| IP rating | None |
| Mating connector | AMP P/N 5787422-1 or 5787446-1 |
Approvals
- UL
Chargers for this pack
- CH1000 Charger, charge + calibrate
- CH1000CAL Charger, charge + calibrate
- CH1010 2 bay, charge + calibrate
- CH1111 4 bay, charge + calibrate
- CH1111CAL Charger, charge + calibrate
- CH4000 Charger, charge
- CH4040 2 bay, charge
- CH4444 4 bay, charge
- CH5000 Charger, charge + calibrate
- CH5050 2 bay, charge + calibrate
- CH5050CAL 2 bay, charge + calibrate
- CH5555 4 bay, charge + calibrate
- CH6555 6 bay, charge + calibrate
- CH7000 Charger, charge
- CH7070 2 bay, charge
- CH7100 Charger, charge
- CH7171 Charger, charge
Accessories that fit
- 610005 Straight Connector - TE Part Number: 5787446-1
- 610007 90° Connector with Right-Hand Key - TE Part Number: 5787422-1
- 610018 90° Connector with Left-Hand Key - TE Part Number 5787428-1
- 629028 3', 5-conductor straight cable for 204x, 205x, 304x & 305x range batteries.
- 629030 3', 2-Conductor coiled cable
- 936186 Travel / dust cap for 205x range batteries
- 936192 Battery Mounting Guide Block for 203x, 204x, 205x batteries Sold individually Circuit board and mounting hardware not included.
- ATA004N USB-to-SMBus smart battery interface with “Y” USB/Battery cable.
- BL237A Connector Mounting Circuit Board
- EB397A Connector Board with Ideal Diode Circuit.
Documents
That address never changes. The revision is a field, not part of the filename, so issuing revision 1.1 replaces the file behind the same URL. Today the version is in the filename, so every revision 404s the previous link.
About this part
NL2054QE34 — Rechargeable Smart Lithium-Ion Battery Pack The Inspired Energy NL2054QE34 is a rugged, intelligent 14.4V / 10.2Ah lithium-ion smart battery designed for high-reliability portable devices. Built with twelve 18650 cells in a 4S3P configuration, it delivers long runtime, high energy density, and accurate fuel gauging. An onboard fuel guage continuously measures voltage, current, temperature, and state-of-charge, communicating through SMBus (Smart Battery Data Specification v1.1 compliant) for seamless integration with host devices and smart chargers. The always-on five-segment LCD provides instant state-of-charge visibility. Multiple layers of electronic protection safeguard against over-charge, over-discharge, over-current, short-circuit, and temperature extremes. A passive safety fuse adds an additional layer of protection. The NL2054QE34 meets major global safety and transportation certifications, including IEC 62133-2, UL/CSA 62133-2, CE, FCC, and UN38.3. Key Features 14.4V nominal / 10.2Ah capacity SMBus smart battery communication Always-on 5-segment LCD fuel gauge Wide operating temperature range (charge 0°C to +45°C / discharge –20°C to +60°C) Advanced electronic and passive safety protection Ideal for portable medical devices, robotics, test equipment, and rugged industrial applications. N-series chargers are recommended for these batteries. For Quantities 1-11:$239.39 USD each Ready to order or need additional information on volume pricing? Click the "Get a Quote" button below to place your order.
