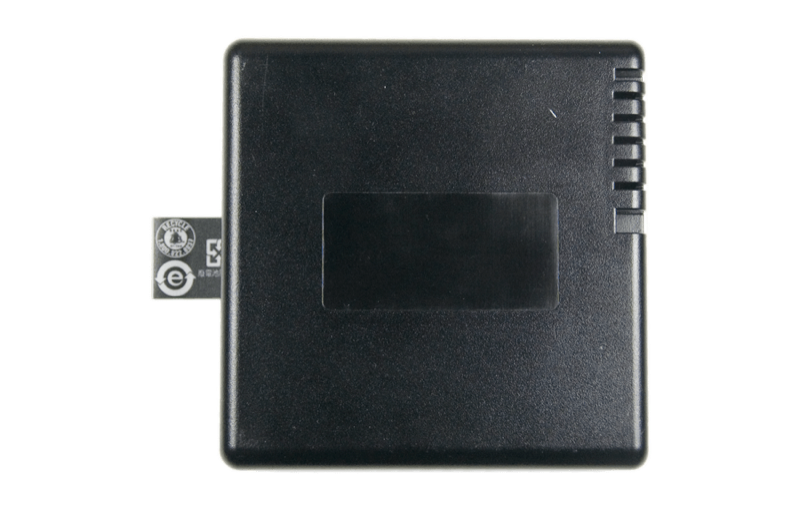

Battery pack
N-Series

ND4054QE50

14.4 V 5 Ah smart lithium-ion battery pack.

Voltage: 14.4 V
Capacity: 5 Ah
Energy: 72 Wh
Current: 8 A

Specifications

Specifications for ND4054QE50
Nominal voltage	14.4 V
Capacity	5 Ah
Energy	72 Wh
Maximum discharge current	8 A
Rated power	80 W
Chemistry	Lithium-ion
Cell	4 x 21700
Cell array	4S1P
Shape	Square
Dimensions (in)	3.74" x 3.81" x 1.08"
Dimensions (mm)	94.89 x 96.57 x 27.26
Equivalent lithium content	6 g
Fuel gauge	Push button 4-bar LED
IP rating	None
Mating connector	AMP P/N 5787422-1 or 5787446-1
Cavity size	27.8mm x 98.1mm cross section

Approvals

Chargers for this pack

Documents

That address never changes. The revision is a field, not part of the filename, so issuing revision 1.1 replaces the file behind the same URL. Today the version is in the filename, so every revision 404s the previous link.

About this part

ND4054QE50 Smart Lithium-Ion Battery: The 40xx range of rechargeable smart Li-Ion battery packs are designed for applications where size and runtime may be a consideration. The ND4054QE50 (4S1P) 14.4V smartbattery incorporates the standard features such as SMbus, a pull tab for easy removal and on-pack LED display for relative SOC indication and is IEC, UL, CSA 62133-2, BIS, KC & PSE approved to meet the highest industry standards for safety and performance. The 4054 battery pack can perform at -20°C for low temperature applications, as the low internal impedance enables the cells to deliver good capacity and discharge current. (Note, in low temperature applications, we recommend testing the device at temperature to validate performance). Features: • SMbus • Pull tab for easy removal • On-pack LCD Display for Relative SOC Indication Our expertise lies in creating customized battery hybrids that seamlessly integrate standard components to deliver optimal performance. Want to connect with our experts? Click here to contact our technical, engineering, and manufacturing teams in Newberry, Florida. ND4054QE50 Smart Li-ion battery customization options: • SHA-1 secure handshake • Custom label • Custom Firmware • Additional performance options for OEM applications N-series chargers are recommended for these batteries. Looking for something with a smaller format? We recommend the ND3054HD29 smart battery Need additional capacity? Check out our NH3054QE34 smart batteries For Quantities 1-11:$169.88 USD each Ready to order or need additional information on volume pricing? Click the "Get a Quote" button below to place your order.
