CH7000
The CH7000 is a standalone smart SMbus battery charger with the capability to accept various input sources such as vehicle cigarette lighter sockets & 12V solar panels.
- Charges
- 70 packs
- Cords
- 3 regions
Specifications
| Functions | Charge |
|---|---|
| Mains input | 110-240 VAC, 50-60 Hz |
| Power supply included | Yes |
| AC cord options | US, EU, UK |
| Mating connector | 5-Pin Standard Connector |
| Dimensions (in) | 7" x 3.5" x 2.25" |
| Dimensions (mm) | 180 x 92 x 58 |
| Not compatible with | P & Nx4xxx Series batteries Compliant to the current environmental standards for |
Approvals
- UL
- CE
- REACH
- RoHS3
Accessories that fit
- 599028 Desktop power supply.
- 629077 Vehicle 12V DC Cable (Cigarette lighter socket) For CH7000 12-24V DC Charger Only
- 551006 North American AC Cable: NEMA 5-15 to IEC320 C13: $6.70 European AC Cable: $8.05 UK AC Cable: $8.45
- 551007 European AC Cable: Schucko 7/7 to IEC320 C13
- 551008 UK AC Cable: BS1363A to IEC320 C13
Packs this works with
Generated from the pack records. Nobody typed this list.
- NB2037HD34 7.2 V, 3.4 Ah
- NB2037QE34 7.2 V, 3.4 Ah
- NB3037HD29 7.2 V, 2.8 Ah
- NC2040HD34 10.8 V, 3.4 Ah
- NC2040QE34 10.8 V, 3.4 Ah
- NC2560A22 10.8 V, 2.2 Ah
- NC3040HD29 10.8 V, 2.8 Ah
- NC3040HD30 10.8 V, 3 Ah
- NC3040QE29 10.8 V, 2.8 Ah
- NC3040QE30 10.8 V, 3 Ah
- ND2017A34 7.2 V, 6.8 Ah
- ND2017QE34 7.2 V, 6.8 Ah
- ND2034ED34 14.4 V, 3.4 Ah
- ND2034HD34 14.4 V, 3.4 Ah
- ND2034QE34 14.4 V, 3.4 Ah
- ND2037HD34 7.2 V, 6.8 Ah
- ND2037QE34 7.2 V, 6.8 Ah
- ND2053ED34 3.6 V, 13.6 Ah
- ND2054HD34 14.4 V, 3.4 Ah
- ND2054QE34 14.4 V, 3.4 Ah
- ND2057HD34 7.2 V, 6.8 Ah
- ND2057QE34 7.2 V, 6.8 Ah
- ND3034HD29 14.4 V, 2.8 Ah
- ND3034QE29 14.4 V, 2.8 Ah
- ND3037HD29 7.2 V, 5.6 Ah
- ND3054HD29 14.4 V, 2.8 Ah
- ND3054HD30 14.4 V, 3 Ah
- ND3054QE30 14.4 V, 3 Ah
- NF2030HD34 10.8 V, 6.8 Ah
- NF2030QE34 10.8 V, 6.8 Ah
- NF2040HD34 10.8 V, 6.8 Ah
- NF2040QE34 10.8 V, 6.8 Ah
- NF2047HD34 7.2 V, 10.2 Ah
- NF2047QE34 7.2 V, 10.2 Ah
- NF3040HD29 10.8 V, 5.6 Ah
- NF3040HD34 10.8 V, 6.8 Ah
- NF3040QE34 10.8 V, 6.8 Ah
- NH2034HD34 14.4 V, 6.8 Ah
- NH2034QE34 14.4 V, 6.8 Ah
- NH2054HD34 14.4 V, 6.8 Ah
- NH2054QE34 14.4 V, 6.8 Ah
- NH2057ED34 7.2 V, 13.6 Ah
- NH2057HD34 7.2 V, 13.6 Ah
- NH2057QE34 7.2 V, 13.6 Ah
- NH3054HD34 14.4 V, 6.8 Ah
- NH3054QE34 14.4 V, 6.8 Ah
- NH3057HD34 7.2 V, 13.6 Ah
- NH3057QE34 7.2 V, 13.6 Ah
- NL2020ED22 10.8 V, 8.8 Ah
- NL2024ED22 14.4 V, 6.6 Ah
- NL2054HD22 14.4 V, 6.6 Ah
- NL2054HD34 14.4 V, 10.2 Ah
- NL2054QE34 14.4 V, 10.2 Ah
- Ni1030CT 10.8 V, 3.9 Ah
- Ni2020ED29 10.8 V, 8.4 Ah
- Ni2020HD29 10.8 V, 8.4 Ah
- Ni2040ED29 10.8 V, 8.4 Ah
- Ni2040HD29 10.8 V, 8.4 Ah
- Ni2040QE29 10.8 V, 8.4 Ah
- Ni3020HD29 10.8 V, 8.4 Ah
- Ni3020QE29 10.8 V, 8.1 Ah
- RH2024HD34 14.4 V, 6.8 Ah
- RH2024QE34 14.4 V, 6.8 Ah
- RH2044HD34 14.4 V, 6.8 Ah
- RH2054HD34 14.4 V, 6.8 Ah
- RH3024HD34 14.4 V, 6.8 Ah
- RH3024QE34 14.4 V, 6.8 Ah
- Ri2050HD29 10.8 V, 8.4 Ah
- Ri3020HD29 10.8 V, 8.4 Ah
- Ri3020QE29 10.8 V, 8.4 Ah
Documents
About this part

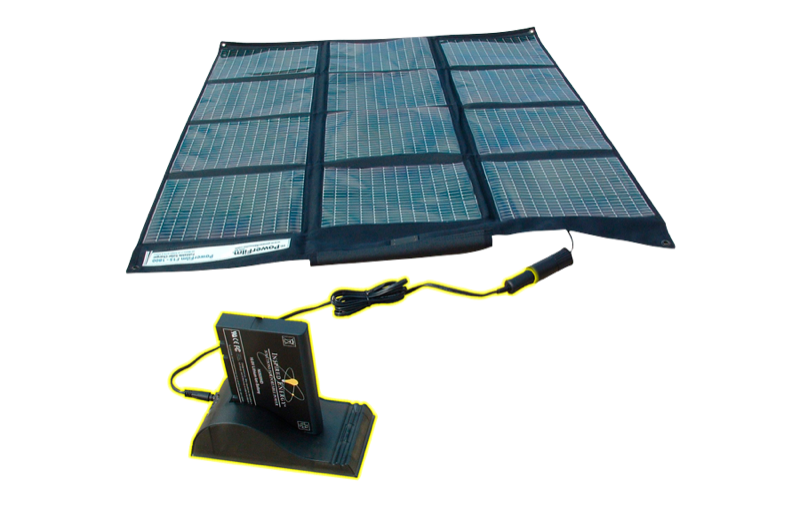

The CH7000 is a standalone smart SMbus battery charger with the capability to accept various input sources such as vehicle cigarette lighter sockets & 12V solar panels. Complete with a 6’ vehicle cigarette lighter plug cable and universal power supply (110VAC-240VAC, 50-60HZ) for global compatibility. AC mains cord options available, please specify your country application when ordering. In addition, the CH7000 can operate from any DC voltage between 10 & 24V. Operation from a 12V/25W solar panel (not included) the CH7000 uses a unique power-sensing circuit to adjust its battery-charge output to suit the constantly changing power available from a solar panel. Optimized for maximum power with variable solar input. Operation stops at 1W automatically resuming when power levels are restored. The following solar panel is recommended: AntiGravity XS-60 The CH7000 is not compatible with P & Nx4xxx Series batteries Compliant to the current environmental standards for REACH/RoHS3. Declarations are available below. UL Listed, FCC & CE Compliant Qty 1-9, $170.85 USD ea. To place an order or for additional quantity pricing, please contact us.
