- Charger
- N-Series
CH4000

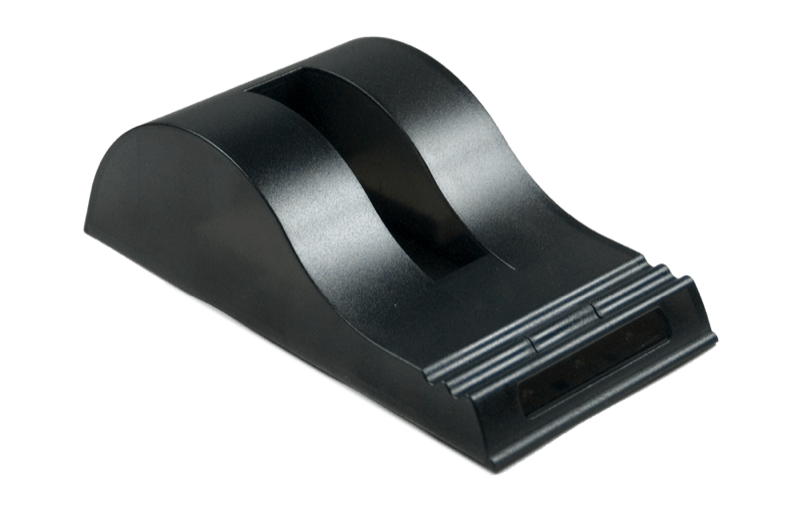

The CH4000 SMbus battery charger is a standalone desktop unit providing charge to Inspired Energy batteries.
- Charges
- 70 packs
- Cords
- 3 regions
Specifications
| Functions | Charge |
|---|---|
| Mains input | 110-240 VAC, 50-60 Hz |
| Power supply included | Yes |
| AC cord options | US, EU, UK |
| Mating connector | 5-Pin Standard Connector |
| Dimensions (in) | 7" x 3.5" x 2.25" |
| Dimensions (mm) | 180 x 92 x 58 |
| Not compatible with | P & Nx4xxx Series batteries CH4000A - NSN # 6130-01-627-8323 , CH4000A E U - NSN |
Stock numbers
| NSN (es batteries CH4000A) | 6130-01-627-8323 |
|---|---|
| NSN (CH4000A E U) | 6130-01-660-0708 |
| NSN (CH4000E) | 6130-01-628-6731 |
Currently a sentence. On the live site these numbers sit inside the product description, where nothing can index or filter them. Defence buyers search by NSN.
Approvals
- UL
- CE
- CEC
- REACH
- RoHS3
Accessories that fit
Packs this works with
Generated from the pack records. Nobody typed this list.
- NB2037HD34 7.2 V, 3.4 Ah
- NB2037QE34 7.2 V, 3.4 Ah
- NB3037HD29 7.2 V, 2.8 Ah
- NC2040HD34 10.8 V, 3.4 Ah
- NC2040QE34 10.8 V, 3.4 Ah
- NC2560A22 10.8 V, 2.2 Ah
- NC3040HD29 10.8 V, 2.8 Ah
- NC3040HD30 10.8 V, 3 Ah
- NC3040QE29 10.8 V, 2.8 Ah
- NC3040QE30 10.8 V, 3 Ah
- ND2017A34 7.2 V, 6.8 Ah
- ND2017QE34 7.2 V, 6.8 Ah
- ND2034ED34 14.4 V, 3.4 Ah
- ND2034HD34 14.4 V, 3.4 Ah
- ND2034QE34 14.4 V, 3.4 Ah
- ND2037HD34 7.2 V, 6.8 Ah
- ND2037QE34 7.2 V, 6.8 Ah
- ND2053ED34 3.6 V, 13.6 Ah
- ND2054HD34 14.4 V, 3.4 Ah
- ND2054QE34 14.4 V, 3.4 Ah
- ND2057HD34 7.2 V, 6.8 Ah
- ND2057QE34 7.2 V, 6.8 Ah
- ND3034HD29 14.4 V, 2.8 Ah
- ND3034QE29 14.4 V, 2.8 Ah
- ND3037HD29 7.2 V, 5.6 Ah
- ND3054HD29 14.4 V, 2.8 Ah
- ND3054HD30 14.4 V, 3 Ah
- ND3054QE30 14.4 V, 3 Ah
- NF2030HD34 10.8 V, 6.8 Ah
- NF2030QE34 10.8 V, 6.8 Ah
- NF2040HD34 10.8 V, 6.8 Ah
- NF2040QE34 10.8 V, 6.8 Ah
- NF2047HD34 7.2 V, 10.2 Ah
- NF2047QE34 7.2 V, 10.2 Ah
- NF3040HD29 10.8 V, 5.6 Ah
- NF3040HD34 10.8 V, 6.8 Ah
- NF3040QE34 10.8 V, 6.8 Ah
- NH2034HD34 14.4 V, 6.8 Ah
- NH2034QE34 14.4 V, 6.8 Ah
- NH2054HD34 14.4 V, 6.8 Ah
- NH2054QE34 14.4 V, 6.8 Ah
- NH2057ED34 7.2 V, 13.6 Ah
- NH2057HD34 7.2 V, 13.6 Ah
- NH2057QE34 7.2 V, 13.6 Ah
- NH3054HD34 14.4 V, 6.8 Ah
- NH3054QE34 14.4 V, 6.8 Ah
- NH3057HD34 7.2 V, 13.6 Ah
- NH3057QE34 7.2 V, 13.6 Ah
- NL2020ED22 10.8 V, 8.8 Ah
- NL2024ED22 14.4 V, 6.6 Ah
- NL2054HD22 14.4 V, 6.6 Ah
- NL2054HD34 14.4 V, 10.2 Ah
- NL2054QE34 14.4 V, 10.2 Ah
- Ni1030CT 10.8 V, 3.9 Ah
- Ni2020ED29 10.8 V, 8.4 Ah
- Ni2020HD29 10.8 V, 8.4 Ah
- Ni2040ED29 10.8 V, 8.4 Ah
- Ni2040HD29 10.8 V, 8.4 Ah
- Ni2040QE29 10.8 V, 8.4 Ah
- Ni3020HD29 10.8 V, 8.4 Ah
- Ni3020QE29 10.8 V, 8.1 Ah
- RH2024HD34 14.4 V, 6.8 Ah
- RH2024QE34 14.4 V, 6.8 Ah
- RH2044HD34 14.4 V, 6.8 Ah
- RH2054HD34 14.4 V, 6.8 Ah
- RH3024HD34 14.4 V, 6.8 Ah
- RH3024QE34 14.4 V, 6.8 Ah
- Ri2050HD29 10.8 V, 8.4 Ah
- Ri3020HD29 10.8 V, 8.4 Ah
- Ri3020QE29 10.8 V, 8.4 Ah
Documents
About this part
The CH4000 SMbus battery charger is a standalone desktop unit providing charge to Inspired Energy batteries. Complete with a universal power supply (110VAC-240VAC, 50-60HZ) for global compatibility. AC mains cord options available, please specify your country application when ordering. Compliant to the current environmental standards for REACH/RoHS3. Declarations are available below. Ul Listed, CE Compliant, CEC compliant The CH4000 is not compatible with P & Nx4xxx Series batteries CH4000A - NSN # 6130-01-627-8323 , CH4000A E U - NSN # 6130-01-660-0708 , CH4000E - NSN # 6130-01-628-6731 Suffix, A (American), E (European), U (UK) Style power cord Qty 1-9, $131.50 USD ea. To place an order or for additional quantity pricing, please contact us.
