- Charger
- N-Series
CH6555

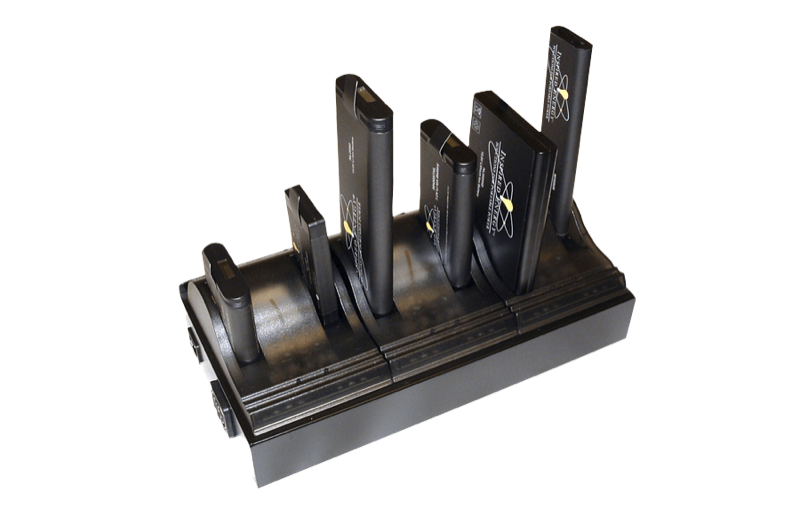

The CH6555 6-bay, simultaneous smart SMbus charger and calibrator is a standalone unit which charges (6) Inspired Energy batteries at the same time, reducing cycle time for multi-battery applications.
- Bays
- 6
- Charges
- 62 packs
- Cords
- 3 regions
Specifications
| Bays | 6 |
|---|---|
| Functions | Charge, Calibrate |
| Mains input | 110-240 VAC, 50-60 Hz |
| AC cord options | US, EU, UK |
| Mating connector | 5-Pin Standard Connector |
| Dimensions (in) | 15.75" x 8" x 5" |
| Dimensions (mm) | 400 x 200 x 126 |
| Not compatible with | P & Nx4xxx Series batteries CH6555E - NSN # 6130-01-628-6734 Qty 1-9, $970 |
Stock numbers
| NSN (es batteries CH6555E) | 6130-01-628-6734 |
|---|
Currently a sentence. On the live site these numbers sit inside the product description, where nothing can index or filter them. Defence buyers search by NSN.
Approvals
- UL
- CE
- REACH
- RoHS3
Accessories that fit
Packs this works with
Generated from the pack records. Nobody typed this list.
- NB2037HD34 7.2 V, 3.4 Ah
- NB2037QE34 7.2 V, 3.4 Ah
- NB3037HD29 7.2 V, 2.8 Ah
- NC2040HD34 10.8 V, 3.4 Ah
- NC2040QE34 10.8 V, 3.4 Ah
- NC2560A22 10.8 V, 2.2 Ah
- NC3040HD29 10.8 V, 2.8 Ah
- NC3040HD30 10.8 V, 3 Ah
- NC3040QE29 10.8 V, 2.8 Ah
- NC3040QE30 10.8 V, 3 Ah
- ND2017A34 7.2 V, 6.8 Ah
- ND2017QE34 7.2 V, 6.8 Ah
- ND2034ED34 14.4 V, 3.4 Ah
- ND2034HD34 14.4 V, 3.4 Ah
- ND2034QE34 14.4 V, 3.4 Ah
- ND2037HD34 7.2 V, 6.8 Ah
- ND2037QE34 7.2 V, 6.8 Ah
- ND2053ED34 3.6 V, 13.6 Ah
- ND2054HD34 14.4 V, 3.4 Ah
- ND2054QE34 14.4 V, 3.4 Ah
- ND2057HD34 7.2 V, 6.8 Ah
- ND2057QE34 7.2 V, 6.8 Ah
- ND3034HD29 14.4 V, 2.8 Ah
- ND3034QE29 14.4 V, 2.8 Ah
- ND3037HD29 7.2 V, 5.6 Ah
- ND3054HD29 14.4 V, 2.8 Ah
- ND3054HD30 14.4 V, 3 Ah
- ND3054QE30 14.4 V, 3 Ah
- NF2030HD34 10.8 V, 6.8 Ah
- NF2030QE34 10.8 V, 6.8 Ah
- NF2040HD34 10.8 V, 6.8 Ah
- NF2040QE34 10.8 V, 6.8 Ah
- NF2047HD34 7.2 V, 10.2 Ah
- NF2047QE34 7.2 V, 10.2 Ah
- NF3040HD29 10.8 V, 5.6 Ah
- NH2034HD34 14.4 V, 6.8 Ah
- NH2054HD34 14.4 V, 6.8 Ah
- NH2054QE34 14.4 V, 6.8 Ah
- NH2057ED34 7.2 V, 13.6 Ah
- NH2057HD34 7.2 V, 13.6 Ah
- NH2057QE34 7.2 V, 13.6 Ah
- NH3054HD34 14.4 V, 6.8 Ah
- NH3054QE34 14.4 V, 6.8 Ah
- NH3057HD34 7.2 V, 13.6 Ah
- NH3057QE34 7.2 V, 13.6 Ah
- NL2020ED22 10.8 V, 8.8 Ah
- NL2024ED22 14.4 V, 6.6 Ah
- NL2054HD22 14.4 V, 6.6 Ah
- NL2054HD34 14.4 V, 10.2 Ah
- NL2054QE34 14.4 V, 10.2 Ah
- Ni1030CT 10.8 V, 3.9 Ah
- Ni2020ED29 10.8 V, 8.4 Ah
- Ni2020HD29 10.8 V, 8.4 Ah
- Ni2040ED29 10.8 V, 8.4 Ah
- Ni2040HD29 10.8 V, 8.4 Ah
- Ni2040QE29 10.8 V, 8.4 Ah
- Ni3020HD29 10.8 V, 8.4 Ah
- RH2024HD34 14.4 V, 6.8 Ah
- RH2024QE34 14.4 V, 6.8 Ah
- RH2044HD34 14.4 V, 6.8 Ah
- RH2054HD34 14.4 V, 6.8 Ah
- Ri2050HD29 10.8 V, 8.4 Ah
Documents
About this part
The CH6555 6-bay, simultaneous smart SMbus charger and calibrator is a standalone unit which charges (6) Inspired Energy batteries at the same time, reducing cycle time for multi-battery applications. Variants are available for use in North America (CH6555A), Europe (CH6555E) or the UK (CH6555U) with a universal power input (110VAC-240VAC, 50-60HZ) for global compatibility. Compliant to the current environmental standards for REACH/RoHS3. Declarations are available below. UL Listed, FCC & CE Compliant The CH6555 is not compatible with P & Nx4xxx Series batteries CH6555E - NSN # 6130-01-628-6734 Qty 1-9, $970.12 USD ea. To place an order or for additional quantity pricing, please contact us.
