- Charger
- N-Series

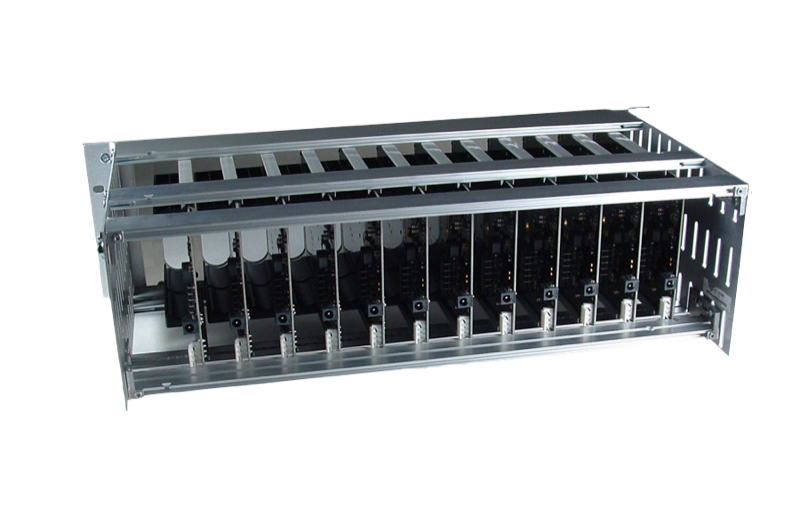

CR12
The 12-bay 19-inch rack mountable unit is capable of simultaneous charging, reducing the cycle time for multi battery applications.
- Bays
- 12
- Charges
- 55 packs
- Cords
- 1 regions
Specifications
| Bays | 12 |
|---|---|
| Functions | Charge |
| AC cord options | US |
| Dimensions (in) | 10.5" x 19" x 5.25" |
| Dimensions (mm) | 266.7 x 482.6 x 133.4 |
Packs this works with
Generated from the pack records. Nobody typed this list.
- NB2037HD34 7.2 V, 3.4 Ah
- NB2037QE34 7.2 V, 3.4 Ah
- NB3037HD29 7.2 V, 2.8 Ah
- NC2040HD34 10.8 V, 3.4 Ah
- NC2040QE34 10.8 V, 3.4 Ah
- NC2560A22 10.8 V, 2.2 Ah
- NC3040HD29 10.8 V, 2.8 Ah
- NC3040HD30 10.8 V, 3 Ah
- NC3040QE29 10.8 V, 2.8 Ah
- NC3040QE30 10.8 V, 3 Ah
- ND2034HD34 14.4 V, 3.4 Ah
- ND2037HD34 7.2 V, 6.8 Ah
- ND2053ED34 3.6 V, 13.6 Ah
- ND2054HD34 14.4 V, 3.4 Ah
- ND2054QE34 14.4 V, 3.4 Ah
- ND2057HD34 7.2 V, 6.8 Ah
- ND2057QE34 7.2 V, 6.8 Ah
- ND3034HD29 14.4 V, 2.8 Ah
- ND3034QE29 14.4 V, 2.8 Ah
- ND3054HD29 14.4 V, 2.8 Ah
- ND3054HD30 14.4 V, 3 Ah
- ND3054QE30 14.4 V, 3 Ah
- NF2030HD34 10.8 V, 6.8 Ah
- NF2040HD34 10.8 V, 6.8 Ah
- NF2040QE34 10.8 V, 6.8 Ah
- NF2047HD34 7.2 V, 10.2 Ah
- NF2047QE34 7.2 V, 10.2 Ah
- NF3040HD29 10.8 V, 5.6 Ah
- NF3040HD34 10.8 V, 6.8 Ah
- NF3040QE34 10.8 V, 6.8 Ah
- NH2034HD34 14.4 V, 6.8 Ah
- NH2034QE34 14.4 V, 6.8 Ah
- NH2054HD34 14.4 V, 6.8 Ah
- NH2054QE34 14.4 V, 6.8 Ah
- NH2057ED34 7.2 V, 13.6 Ah
- NH2057HD34 7.2 V, 13.6 Ah
- NH2057QE34 7.2 V, 13.6 Ah
- NH3054HD34 14.4 V, 6.8 Ah
- NH3054QE34 14.4 V, 6.8 Ah
- NH3057QE34 7.2 V, 13.6 Ah
- NL2020ED22 10.8 V, 8.8 Ah
- NL2024ED22 14.4 V, 6.6 Ah
- NL2054HD22 14.4 V, 6.6 Ah
- Ni1030CT 10.8 V, 3.9 Ah
- Ni2020ED29 10.8 V, 8.4 Ah
- Ni2020HD29 10.8 V, 8.4 Ah
- Ni2040ED29 10.8 V, 8.4 Ah
- Ni2040HD29 10.8 V, 8.4 Ah
- Ni2040QE29 10.8 V, 8.4 Ah
- Ni3020HD29 10.8 V, 8.4 Ah
- RH2024HD34 14.4 V, 6.8 Ah
- RH2024QE34 14.4 V, 6.8 Ah
- RH2044HD34 14.4 V, 6.8 Ah
- RH2054HD34 14.4 V, 6.8 Ah
- Ri2050HD29 10.8 V, 8.4 Ah
Documents
No datasheet published. The gap is shown rather
than hidden, and npm run validate lists it as a warning on every build.
About this part
The 12-bay 19-inch rack mountable unit is capable of simultaneous charging, reducing the cycle time for multi battery applications. The CR-12 is compatible with most of our N-Series batteries, charging each at their maximum rate. The modular design allows multiple CR-12s to be stacked to provide charging for any quantity of battery packs, and a 24VDC power supply can be specified to suit the quantity of units required. The unit fits all 19″ racks. (Note: Flight case and 24VDC power supply sold separately) Fully assembled units (QK) are available for purchase Please contact us for additional information. NOT DESIGNED FOR USE WITH NON INSPIRED ENERGY BRAND BATTERY PACKS
