- Charger
- N-Series

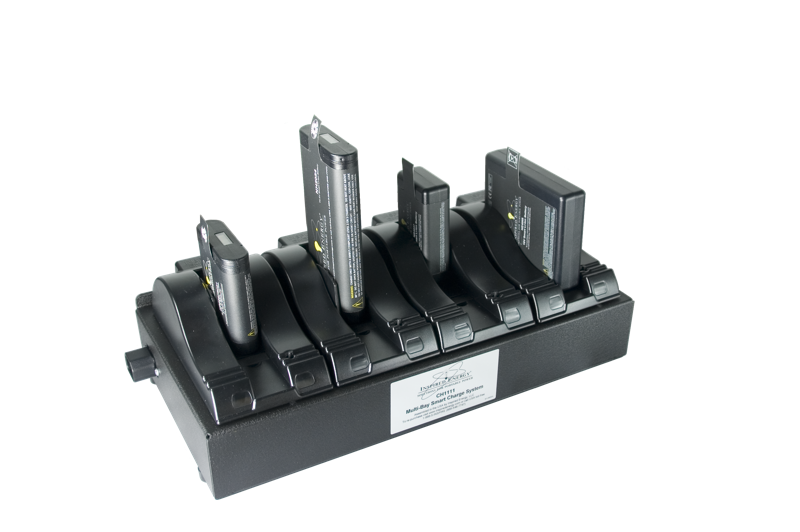

CH1111CAL
The CH1111CAL is a SMbus compatible unit designed to set the smart battery SOC to 25%, per IATA shipping regulations.
- Charges
- 59 packs
- Cords
- 3 regions
Specifications
| Functions | Charge, Calibrate |
|---|---|
| Power supply included | Yes |
| AC cord options | US, EU, UK |
| Mating connector | 5-Pin Standard Connector |
| Dimensions (in) | 16" x 8" x 5" |
| Dimensions (mm) | 400 x 118 x 127 |
Approvals
- UL
- CE
- REACH
- RoHS3
Accessories that fit
Packs this works with
Generated from the pack records. Nobody typed this list.
- NB4033HD50 3.6 V, 10 Ah
- NB4037HD50 7.2 V, 5 Ah
- NB4037QE50 7.2 V, 5 Ah
- NC2040QE34 10.8 V, 3.4 Ah
- NC3040HD29 10.8 V, 2.8 Ah
- NC3040QE29 10.8 V, 2.8 Ah
- NC3040QE30 10.8 V, 3 Ah
- NC4040HD50 10.8 V, 5 Ah
- NC4040QE50 10.8 V, 5 Ah
- ND2017A34 7.2 V, 6.8 Ah
- ND2034HD34 14.4 V, 3.4 Ah
- ND2034QE34 14.4 V, 3.4 Ah
- ND2037HD34 7.2 V, 6.8 Ah
- ND2037QE34 7.2 V, 6.8 Ah
- ND2053ED34 3.6 V, 13.6 Ah
- ND2054HD34 14.4 V, 3.4 Ah
- ND2054QE34 14.4 V, 3.4 Ah
- ND2057HD34 7.2 V, 6.8 Ah
- ND2057QE34 7.2 V, 6.8 Ah
- ND3034HD29 14.4 V, 2.8 Ah
- ND3034QE29 14.4 V, 2.8 Ah
- ND3054HD29 14.4 V, 2.8 Ah
- ND3054HD30 14.4 V, 3 Ah
- ND3054QE30 14.4 V, 3 Ah
- ND4054HD50 14.4 V, 5 Ah
- ND4054QE50 14.4 V, 5 Ah
- ND4057HD50 7.2 V, 10 Ah
- NE4068HD50 18 V, 5 Ah
- NE4068QE50 18 V, 5 Ah
- NF2030HD34 10.8 V, 6.8 Ah
- NF2030QE34 10.8 V, 6.8 Ah
- NF2040HD34 10.8 V, 6.8 Ah
- NF2040QE34 10.8 V, 6.8 Ah
- NF2047HD34 7.2 V, 10.2 Ah
- NF2047QE34 7.2 V, 10.2 Ah
- NF3040HD29 10.8 V, 5.6 Ah
- NH2054HD34 14.4 V, 6.8 Ah
- NH2057ED34 7.2 V, 13.6 Ah
- NH2057HD34 7.2 V, 13.6 Ah
- NH2057QE34 7.2 V, 13.6 Ah
- NH3054HD34 14.4 V, 6.8 Ah
- NH3054QE34 14.4 V, 6.8 Ah
- NH3057HD34 7.2 V, 13.6 Ah
- NH3057QE34 7.2 V, 13.6 Ah
- NL2020ED22 10.8 V, 8.8 Ah
- NL2054HD22 14.4 V, 6.6 Ah
- NL2054HD34 14.4 V, 10.2 Ah
- NL2054QE34 14.4 V, 10.2 Ah
- Ni2020ED29 10.8 V, 8.4 Ah
- Ni2020HD29 10.8 V, 8.4 Ah
- Ni2040ED29 10.8 V, 8.4 Ah
- Ni2040HD29 10.8 V, 8.4 Ah
- Ni2040QE29 10.8 V, 8.4 Ah
- Ni3020HD29 10.8 V, 8.4 Ah
- RH2024HD34 14.4 V, 6.8 Ah
- RH2024QE34 14.4 V, 6.8 Ah
- RH2044HD34 14.4 V, 6.8 Ah
- RH2054HD34 14.4 V, 6.8 Ah
- Ri2050HD29 10.8 V, 8.4 Ah
Documents
About this part
The CH1111CAL is a SMbus compatible unit designed to set the smart battery SOC to 25%, per IATA shipping regulations. The CH1111CAL is a standalone desktop unit has the added feature to perform a full recalibration cycle to Inspired Energy N & R-series battery products. If you need a unit to fully charge the battery please review the CH1111 Variants are available for the AC mains cord. North America (CH1111CALA), Europe (CH1111CALE) or the UK (CH1111CALU) for global compatibility. Also avalable without the power cord (CH1111CALX) Compliant to the current environmental standards for REACH/RoHS3. Declarations are available below. UL Listed & CE Compliant Qty 1-9, $666.87 USD ea. To place an order or for additional quantity pricing, please contact us.
