- Charger
- N-Series
CH7100

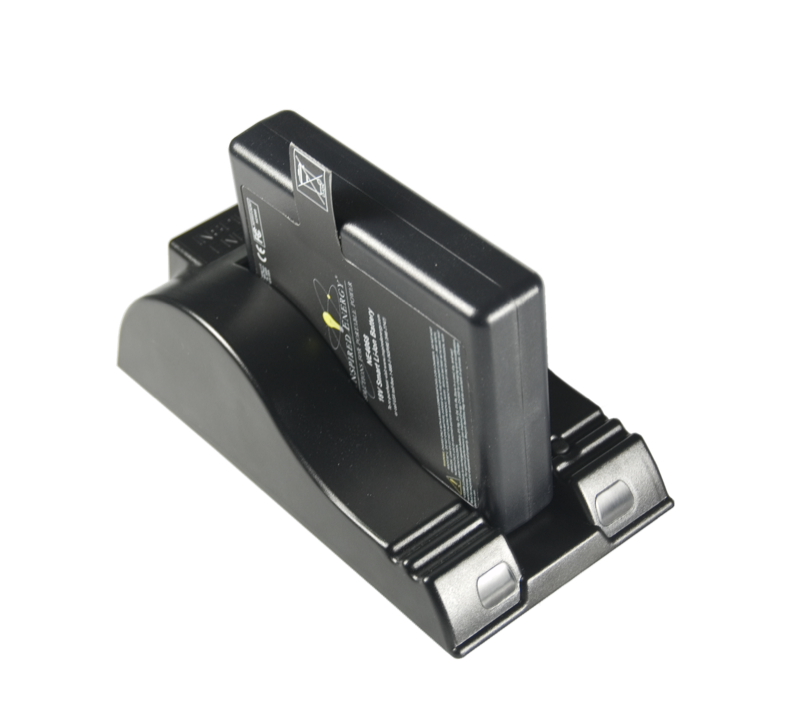

The CH7100 SMbus charger is a standalone unit providing charge to all Inspired Energy N & R-series battery products.
- Charges
- 56 packs
- Cords
- 3 regions
Specifications
| Functions | Charge |
|---|---|
| Power supply included | Yes |
| AC cord options | US, EU, UK |
| Mating connector | 5-Pin Standard Connector |
| Dimensions (in) | 7" x 3.5" x 2.25" |
| Dimensions (mm) | 180 x 92 x 58 |
Packs this works with
Generated from the pack records. Nobody typed this list.
- NB4033HD50 3.6 V, 10 Ah
- NC2040QE34 10.8 V, 3.4 Ah
- NC3040HD29 10.8 V, 2.8 Ah
- NC3040QE29 10.8 V, 2.8 Ah
- NC3040QE30 10.8 V, 3 Ah
- NC4040HD50 10.8 V, 5 Ah
- NC4040QE50 10.8 V, 5 Ah
- ND2017A34 7.2 V, 6.8 Ah
- ND2017QE34 7.2 V, 6.8 Ah
- ND2034ED34 14.4 V, 3.4 Ah
- ND2034HD34 14.4 V, 3.4 Ah
- ND2034QE34 14.4 V, 3.4 Ah
- ND2037HD34 7.2 V, 6.8 Ah
- ND2037QE34 7.2 V, 6.8 Ah
- ND2053ED34 3.6 V, 13.6 Ah
- ND2054HD34 14.4 V, 3.4 Ah
- ND2054QE34 14.4 V, 3.4 Ah
- ND2057HD34 7.2 V, 6.8 Ah
- ND2057QE34 7.2 V, 6.8 Ah
- ND3034HD29 14.4 V, 2.8 Ah
- ND3034QE29 14.4 V, 2.8 Ah
- ND3037HD29 7.2 V, 5.6 Ah
- ND3054HD29 14.4 V, 2.8 Ah
- ND3054HD30 14.4 V, 3 Ah
- ND3054QE30 14.4 V, 3 Ah
- NE4068HD50 18 V, 5 Ah
- NF2030HD34 10.8 V, 6.8 Ah
- NF2030QE34 10.8 V, 6.8 Ah
- NF2040HD34 10.8 V, 6.8 Ah
- NF2040QE34 10.8 V, 6.8 Ah
- NF2047HD34 7.2 V, 10.2 Ah
- NF2047QE34 7.2 V, 10.2 Ah
- NF3040HD29 10.8 V, 5.6 Ah
- NH2054HD34 14.4 V, 6.8 Ah
- NH2057ED34 7.2 V, 13.6 Ah
- NH2057HD34 7.2 V, 13.6 Ah
- NH2057QE34 7.2 V, 13.6 Ah
- NH3054HD34 14.4 V, 6.8 Ah
- NH3054QE34 14.4 V, 6.8 Ah
- NH3057HD34 7.2 V, 13.6 Ah
- NH3057QE34 7.2 V, 13.6 Ah
- NL2020ED22 10.8 V, 8.8 Ah
- NL2054HD22 14.4 V, 6.6 Ah
- NL2054HD34 14.4 V, 10.2 Ah
- NL2054QE34 14.4 V, 10.2 Ah
- Ni2020ED29 10.8 V, 8.4 Ah
- Ni2020HD29 10.8 V, 8.4 Ah
- Ni2040ED29 10.8 V, 8.4 Ah
- Ni2040HD29 10.8 V, 8.4 Ah
- Ni2040QE29 10.8 V, 8.4 Ah
- Ni3020HD29 10.8 V, 8.4 Ah
- RH2024HD34 14.4 V, 6.8 Ah
- RH2024QE34 14.4 V, 6.8 Ah
- RH2044HD34 14.4 V, 6.8 Ah
- RH2054HD34 14.4 V, 6.8 Ah
- Ri2050HD29 10.8 V, 8.4 Ah
Documents
About this part
The CH7100 SMbus charger is a standalone unit providing charge to all Inspired Energy N & R-series battery products. Complete with a universal 50-60Hz, 100-220VAC power supply and choice of AC mains cord for global use. In addition the CH7100 can operate from any DC voltage between 10 & 26V. This makes it ideal for use with a vehicle cigarette-lighter socket. Qty 1-9, $170.85 USD ea. To place an order or for additional quantity pricing, please contact us.
