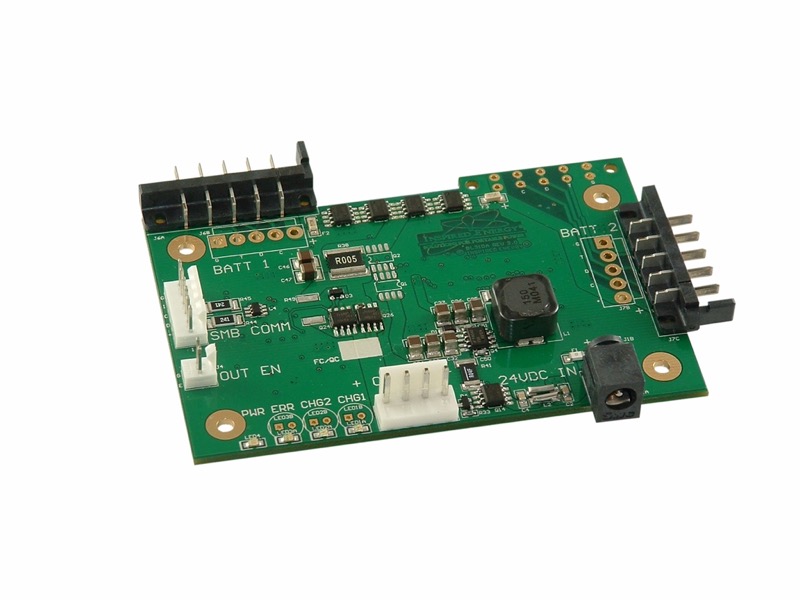

Embedded Charger Boards
Inspired Energy charger boards are designed for use as smart SMBus charger reference designs and for use as embedded chargers within a portable electronic device.
- Charges
- 27 packs
- Cords
- 1 regions
Specifications
| Functions | Charge |
|---|---|
| AC cord options | US |
Packs this works with
Generated from the pack records. Nobody typed this list.
- ND2017QE34 7.2 V, 6.8 Ah
- ND2034QE34 14.4 V, 3.4 Ah
- ND2054HD34 14.4 V, 3.4 Ah
- NH2034QE34 14.4 V, 6.8 Ah
- NL2020ED22 10.8 V, 8.8 Ah
- NL2024ED22 14.4 V, 6.6 Ah
- NL2054HD22 14.4 V, 6.6 Ah
- Ni2020ED29 10.8 V, 8.4 Ah
- Ni2020HD29 10.8 V, 8.4 Ah
- Ni2040ED29 10.8 V, 8.4 Ah
- Ni2040HD29 10.8 V, 8.4 Ah
- Ni2040QE29 10.8 V, 8.4 Ah
- Ni3020HD29 10.8 V, 8.4 Ah
- Ni3020QE29 10.8 V, 8.1 Ah
- PH3054HD29 14.4 V, 5.6 Ah
- PH3054QE29 14.4 V, 5.6 Ah
- PH3059HD29 28.8 V, 2.8 Ah
- PH3059QE29 28.8 V, 2.8 Ah
- RH2024HD34 14.4 V, 6.8 Ah
- RH2024QE34 14.4 V, 6.8 Ah
- RH2044HD34 14.4 V, 6.8 Ah
- RH2054HD34 14.4 V, 6.8 Ah
- RH3024HD34 14.4 V, 6.8 Ah
- RH3024QE34 14.4 V, 6.8 Ah
- Ri2050HD29 10.8 V, 8.4 Ah
- Ri3020HD29 10.8 V, 8.4 Ah
- Ri3020QE29 10.8 V, 8.4 Ah
Documents
No datasheet published. The gap is shown rather
than hidden, and npm run validate lists it as a warning on every build.
About this part
Inspired Energy charger boards are designed for use as smart SMBus charger reference designs and for use as embedded chargers within a portable electronic device. We offer embeddable charger solutions with a variety of options and welcome custom projects tailored to support your needs. Part number Description Vin Nom BattV Vo Dimensions EB330A Single Battery Charger Board, N-series (3.6 to 14.4V battery). 24VDC, 60W input. Battery voltage output. 24VDC 3.6 to 14.4V Batt ~2.34 x 3 x 0.6" EB343A Single Battery Charger Board, N-series (3.6 to 14.4V battery). 24VDC, 60W input. 24VDC input voltage passes thru when present. 24VDC 3.6 to 14.4V Batt or Vin EB335A Single Battery Charger Board, N-series (3.6 to 14.4V battery). 10-24VDC, 60W input. The board will pass through either the battery voltage or the input DC voltage; whichever is higher. 10-24VDC 3.6 to 14.4V Batt or Vin EB478A Single Battery Charger Board, N-series (3.6 to 18V battery). 24-26VDC, 60W input. Input voltage passes thru when present. 24-26VDC 3.6 to 18V Batt or Vin EB488A Single Battery Charger Board, N-series (3.6 to 18V battery). 10-26VDC, 60W input. The board will pass through either the battery voltage or the input DC voltage; whichever is higher. 10-26VDC 3.6 to 18V Batt or Vin ~2.34 x 3 x 0.6" EB499A Single Battery Charger Board, N-series (3.6 to 14.4V battery). 15-24VDC, 60W input. The board will pass through either the battery voltage or the input DC voltage; whichever is higher. 15-24VDC 3.6 to 18V Batt or Vin ~1.96 x 2.36 x 0.45" EB486A Single Battery Charger Board, P-Series (3.6 to 28.8V battery). 10-40VDC, 60W input . 10-40VDC 3.6 to 28.8V Batt or Vin ~2.75 x 5.25 x 0.6" EB310A Dual Battery Charger Board, N-series (3.6 to 14.4V battery). 20-24VDC, 60W input. The output will therefore vary from the battery charge voltage down to the battery cutoff voltage. Note: if both batteries are removed there will be no output. 20-24VDC 3.6 to 14.4V Batt ~2.65 x 4.05 x 0.6" EB325A Dual Battery Charger Board, N-series (3.6 to 14.4V battery). 20-24VDC, 60W input . 24VDC input passes thru when present, if battery not present for output. 20-24VDC 3.6 to 14.4V Batt or Vin Please This email address is being protected from spambots. You need JavaScript enabled to view it. for further information.
