- Battery pack
- P-Series

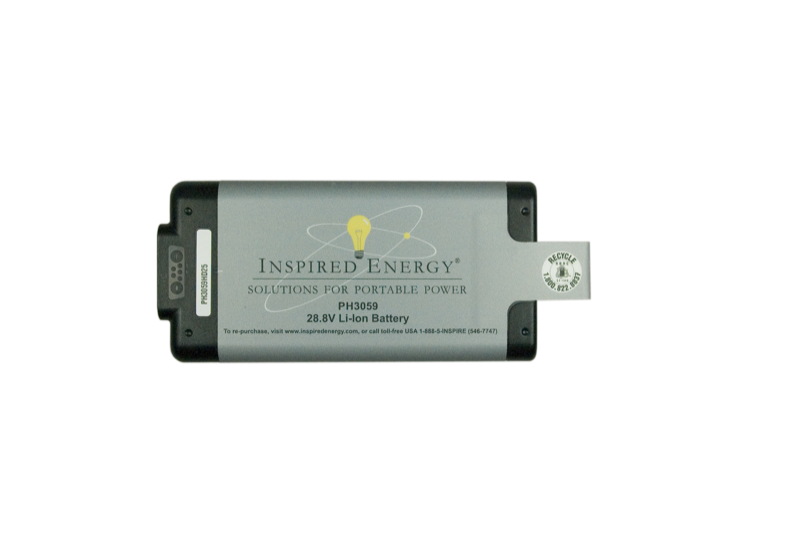

PH3059HD29
28.8 V 2.8 Ah smart lithium-ion battery pack.
- Voltage
- 28.8 V
- Capacity
- 2.8 Ah
- Energy
- 81 Wh
- Current
- 12 A
Specifications
| Nominal voltage | 28.8 V |
|---|---|
| Capacity | 2.8 Ah |
| Energy | 81 Wh |
| Maximum discharge current | 12 A |
| Rated power | 240 W |
| Chemistry | Lithium-ion |
| Cell | 8 x 18650 |
| Cell array | 8S1P |
| Shape | Rectangular |
| Dimensions (in) | 6.62" x 3.22" x 1.1" |
| Dimensions (mm) | 168.1 x 81.8 x 27.7 |
| Equivalent lithium content | 4 g |
| Fuel gauge | Always on 5-Bar LCD |
| IP rating | None |
| Mating connector | 7-Pin D-Sub |
| Cavity size | 27.8mm x 98.1mm cross section |
Chargers for this pack
Accessories that fit
- 936238A1 Travel Cap
- 619039 30A Right Angle PC mount mating connector for P- Series batteries.
- 699012 Backshell Required for 699013
- 699013 Straight "P" Connector for Flying Lead
- 699014 P-Series Mating connector kit.
- 699023 P-Series Mating connector kit.
- ATA005P USB-to-SMBus smart battery interface with “Y” USB/Battery cable Click here for Instructions and Software download (205 MB Zip File)
- EB429 Ideal Diode Board
Documents
- Datasheet /downloads/PH3059HD29/datasheet
- Declaration of conformance / testing summary /downloads/PH3059HD29/conformance
That address never changes. The revision is a field, not part of the filename, so issuing revision 1.2 replaces the file behind the same URL. Today the version is in the filename, so every revision 404s the previous link.
About this part
The PH3059 high power density smart battery is ideal for use in uninterruptible power supply systems and low-current DC motors etc. Fitted with high power density Li-ion manganese cells enables very high current delivery for short periods. Complete with a new standard connector to handle its higher operating voltage and higher discharge currents. Its rugged construction rating reflects its application in mobile environments. The P-series charger is required for these batteries. These smart Li-ion batteries can be customized to meet unique specifications. Custom label, custom firmware and some performance options are available. Creating custom-hybrids of standard batteries is a part of Inspired Energy’s established expertise. The PH3059HD29 has been updated as a replacement for the previous PH3059HD25 & HD26 models. Qty 1-11, $189.20 USD ea. To place an order or for additional quantity pricing, please contact us.
