Charger
N-Series

MC20505

Belt pack holster for NDx05x batteries with integrated charger.

Charges: 6 packs
Cords: 3 regions

Specifications

Specifications for MC20505
Functions	Charge
Power supply included	Yes
AC cord options	US, EU, UK

Packs this works with

Generated from the pack records. Nobody typed this list.

ND2053ED34 3.6 V, 13.6 Ah
ND2054HD34 14.4 V, 3.4 Ah
ND2054QE34 14.4 V, 3.4 Ah
ND2057HD34 7.2 V, 6.8 Ah
ND2057QE34 7.2 V, 6.8 Ah
ND3054HD29 14.4 V, 2.8 Ah

Documents

No datasheet published. The gap is shown rather than hidden, and npm run validate lists it as a warning on every build.

About this part

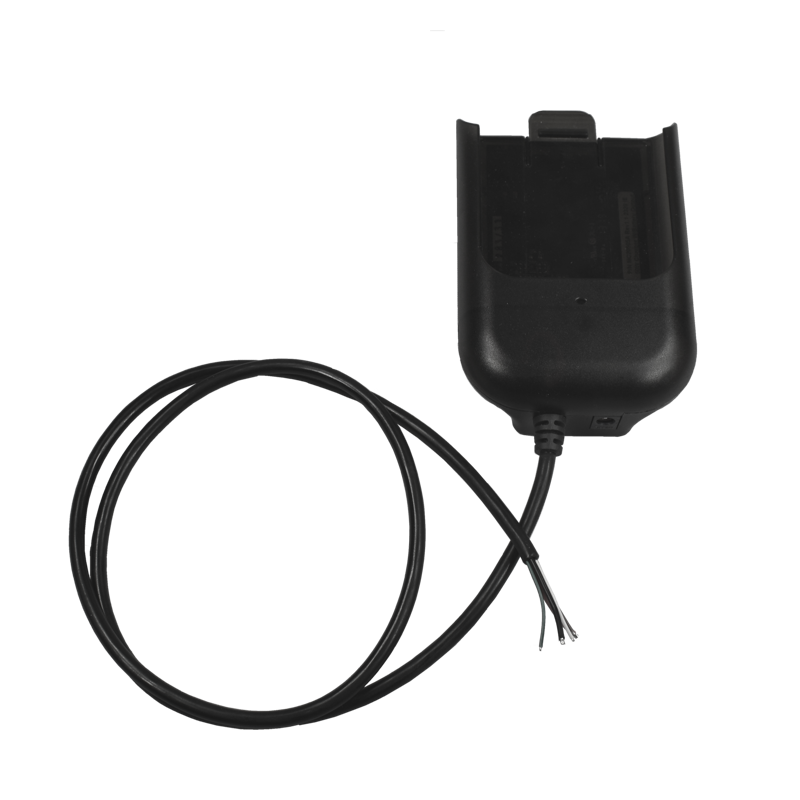

Belt pack holster for NDx05x batteries with integrated charger. 5-wire straight cable to bare leads (no connector) with Battery Voltage output. 24Vdc input with power supply and AC mains cord. Compatible with 4 cell, ND2053, ND2054, ND3054, ND2057 & ND3057 battery packs Qty 1-9, $106.92 USD ea. To place an order or for additional quantity pricing, please contact us.
