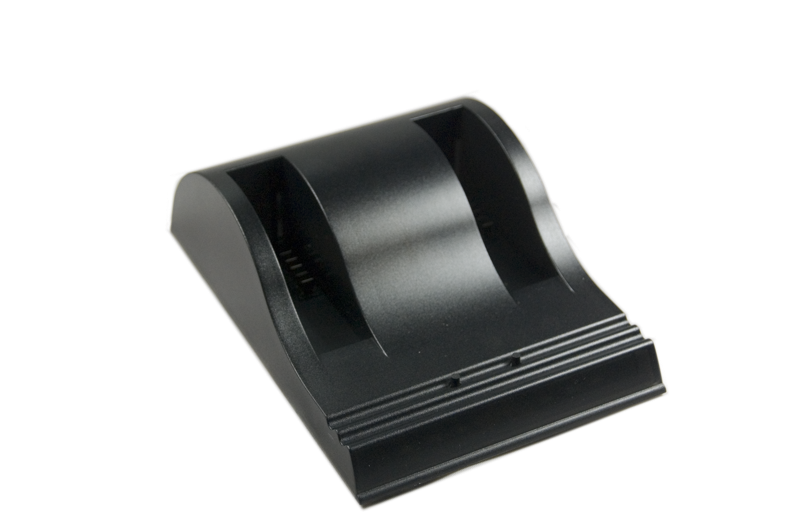

CH5050CAL
The CH5050CAL 2-bay smart SMbus charger and calibrator is a standalone unit which charges (2) Inspired Energy batteries at the same time, reducing cycle time for multi-battery applications.
- Bays
- 2
- Charges
- 4 packs
- Cords
- 3 regions
Specifications
| Bays | 2 |
|---|---|
| Functions | Charge, Calibrate |
| Mains input | 110-240 VAC, 50-60 Hz |
| Power supply included | Yes |
| AC cord options | US, EU, UK |
| Mating connector | 5-Pin Standard Connector |
| Dimensions (in) | 7" x 5" x 2.25" |
| Dimensions (mm) | 180 x 122 x 58 |
| Not compatible with | P & Nx4xxx Series batteries CH5050E - NSN # 6130-01-671-8641 CH5050U - NSN # 613 |
Stock numbers
| NSN (es batteries CH5050E) | 6130-01-671-8641 |
|---|---|
| NSN (CH5050U) | 6130-01-676-9083 |
Currently a sentence. On the live site these numbers sit inside the product description, where nothing can index or filter them. Defence buyers search by NSN.
Approvals
- UL
- CE
- CEC
- REACH
- RoHS3
Accessories that fit
Packs this works with
Generated from the pack records. Nobody typed this list.
Documents
About this part
The CH5050CAL 2-bay smart SMbus charger and calibrator is a standalone unit which charges (2) Inspired Energy batteries at the same time, reducing cycle time for multi-battery applications. This is a unit used to adjust the battery state of charge to 25% for shipping or storage when the battery is inserted. While it also includes a full cycle re-calibration function that will leave the battery fully charged, it is not intended to be used to fully charge a battery. Complete with a universal power supply (110VAC-240VAC, 50-60HZ) for global compatibility. AC mains cord options available, please specify your country application when ordering. Compliant to the current environmental standards for REACH/RoHS3. Declarations are available below. UL Listed, CE Compliant, CEC Compliant The CH5050 is not compatible with P & Nx4xxx Series batteries CH5050E - NSN # 6130-01-671-8641 CH5050U - NSN # 6130-01-676-9083 Suffix, A (American), E (European), U (UK) Style power cord
