- Charger
- P-Series

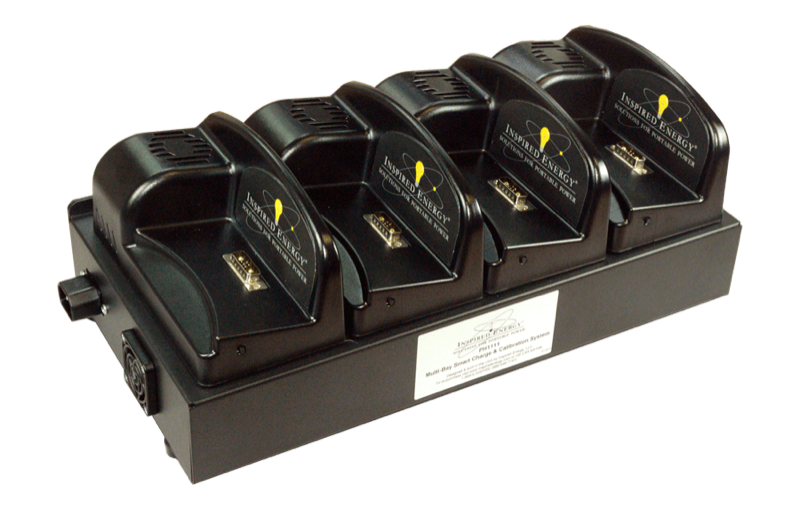

PH1111
The PH1111 4-bay, simultaneous smart SMbus charger and calibrator is a standalone unit which charges any 4 “P-Series” Inspired Energy batteries at the same time, reducing cycle time for...
- Bays
- 4
- Charges
- 12 packs
- Cords
- 3 regions
Specifications
| Bays | 4 |
|---|---|
| Functions | Charge, Calibrate |
| Mains input | 110-240 VAC, 50-60 Hz |
| AC cord options | US, EU, UK |
| Mating connector | 7-Pin D-Sub |
| Dimensions (in) | 16" x 8" x 6.25" |
| Dimensions (mm) | 400 x 203 x 159 |
Approvals
- REACH
Packs this works with
Generated from the pack records. Nobody typed this list.
- PB3037HD29 7.2 V, 2.8 Ah
- PD3074HD26 14.4 V, 2.6 Ah
- PD3077HD26 7.2 V, 5.2 Ah
- PH2054HD34 14.4 V, 6.8 Ah
- PH2054HD34 and PH4000 Package Offer 14.4 V, 6.8 Ah
- PH2059HD29 28.8 V, 2.9 Ah
- PH2059HD34 28.8 V, 3.4 Ah
- PH2059QE34 28.8 V, 3.4 Ah
- PH3054HD29 14.4 V, 5.6 Ah
- PH3054QE29 14.4 V, 5.6 Ah
- PH3059HD29 28.8 V, 2.8 Ah
- PH3059QE29 28.8 V, 2.8 Ah
Documents
About this part
The PH1111 4-bay, simultaneous smart SMbus charger and calibrator is a standalone unit which charges any 4 “P-Series” Inspired Energy batteries at the same time, reducing cycle time for multi-battery applications. Variants are available for use in North America (PH1111A), Europe (PH1111E) or the UK (PH1111U) with a universal power input (110VAC-240VAC, 50-60HZ) for global compatibility. Compliant to the current environmental standards for REACH/RoHS2. CE/FCC & customs Declarations are available below. Qty 1-9, $775.04 USD ea. To place an order or for additional quantity pricing, please contact us.
