- Battery pack
- P-Series

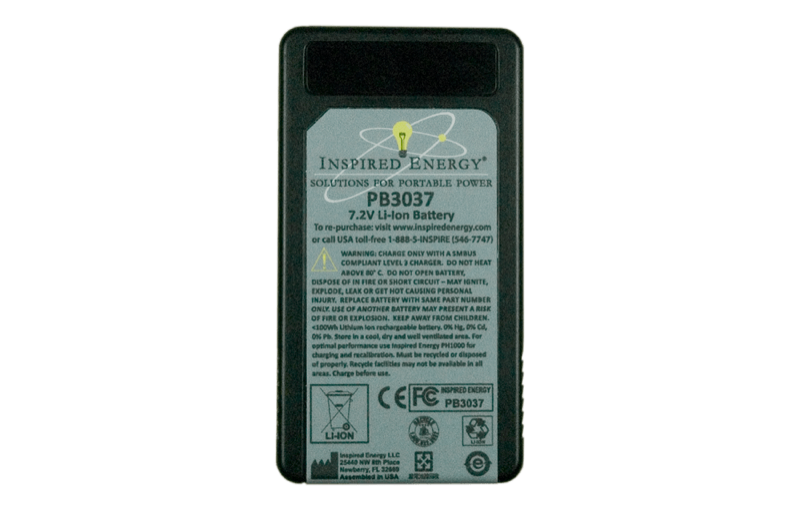

PB3037HD29
7.2 V 2.8 Ah smart lithium-ion battery pack.
- Voltage
- 7.2 V
- Capacity
- 2.8 Ah
- Energy
- 20 Wh
- Current
- 10 A
Specifications
| Nominal voltage | 7.2 V |
|---|---|
| Capacity | 2.8 Ah |
| Energy | 20 Wh |
| Maximum discharge current | 10 A |
| Rated power | 50 W |
| Chemistry | Lithium-ion |
| Cell | 2 x 18650 |
| Cell array | 2S1P |
| Shape | Rectangular |
| Dimensions (in) | 3.8" x 2.1" x 54" |
| Dimensions (mm) | 99 x 54 x 29 |
| Equivalent lithium content | 4 g |
| Fuel gauge | Push button 4-bar LED |
| IP rating | IP65 |
| Mating connector | 7-Pin D-Sub |
Chargers for this pack
Accessories that fit
- 936238A1 Travel Cap
- 619039 30A Right Angle PC mount mating connector for P- Series batteries.
- 699012 Backshell Required for 699013
- 699013 Straight "P" Connector for Flying Lead
- 699014 P-Series Mating connector kit.
- 699023 P-Series Mating connector kit.
- ATA005P USB-to-SMBus smart battery interface with “Y” USB/Battery cable Click here for Instructions and Software download (205 MB Zip File)
- EB429 Ideal Diode Board
Documents
No datasheet published. The gap is shown rather
than hidden, and npm run validate lists it as a warning on every build.
About this part
The PB3037 high power density smart battery is ideal for use in uninterruptible power supply systems and low-current DC motors etc. Fitted with high power density Li-ion manganese cells enables very high current delivery for short periods. Complete with a new standard connector to handle its higher operating voltage and higher discharge currents. Its rugged construction rating reflects its application in mobile environments. The P-series charger is required for these batteries. These smart Li-ion batteries can be customized to meet unique specifications. Custom label, custom firmware and some performance options are available. Creating custom-hybrids of standard batteries is a part of Inspired Energy’s established expertise. The PB3037HD29 has been updated as a replacement for the previous PB3037HD25 & 26 models. Please contact Sales to discuss volume pricing and availability. Extended lead time will apply.
