- Battery pack
- P-Series

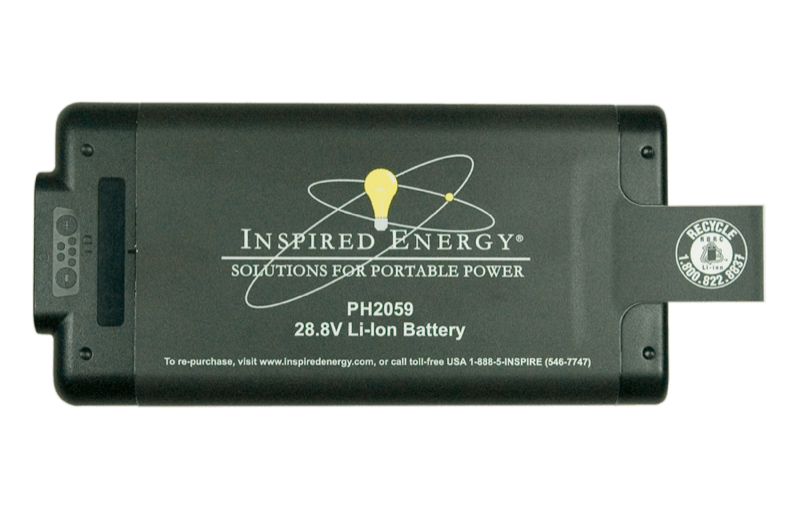

PH2059HD29
28.8 V 2.9 Ah smart lithium-ion battery pack.
- Voltage
- 28.8 V
- Capacity
- 2.9 Ah
- Energy
- 84 Wh
- Current
- 4 A
Specifications
| Nominal voltage | 28.8 V |
|---|---|
| Capacity | 2.9 Ah |
| Energy | 84 Wh |
| Maximum discharge current | 4 A |
| Rated power | 80 W |
| Chemistry | Lithium-ion |
| Cell | 8 x 18650 |
| Cell array | 8S1P |
| Shape | Rectangular |
| Dimensions (in) | 6.62" x 3.22" x 1.1" |
| Dimensions (mm) | 168.1 x 81.8 x 27.7 |
| Equivalent lithium content | 6.9 g |
| Fuel gauge | Always on 5-Bar LCD |
| IP rating | None |
| Mating connector | 7-Pin D-Sub |
Chargers for this pack
Accessories that fit
- 619039 30A Right Angle PC mount mating connector for P- Series batteries.
- 699012 Backshell Required for 699013
- 699013 Straight "P" Connector for Flying Lead
- 699014 P-Series Mating connector kit.
- 699023 P-Series Mating connector kit.
- 936238A1 Travel Cap
- ATA005P USB-to-SMBus smart battery interface with “Y” USB/Battery cable Click here for Instructions and Software download (205 MB Zip File)
- EB429 Ideal Diode Board
Documents
- Datasheet /downloads/PH2059HD29/datasheet
- Declaration of conformance / testing summary /downloads/PH2059HD29/conformance
That address never changes. The revision is a field, not part of the filename, so issuing revision 1.2 replaces the file behind the same URL. Today the version is in the filename, so every revision 404s the previous link.
About this part
We recommend the PH2059HD34 for use, over previous PH2059 models. The PH2059 uses high capacity cells to maximize the energy density stored within the rugged case. Complete with a new standard connector to handle its higher operating voltage and higher discharge currents. The P-series charger is required for these batteries. Its rugged construction rating reflects it application in mobile environments. These smart Li-ion batteries can be customized to meet unique specifications. Custom label, custom firmware and some performance options are available. Creating custom-hybrids of standard batteries is a part of Inspired Energy’s established expertise.
