- Charger
- P-Series

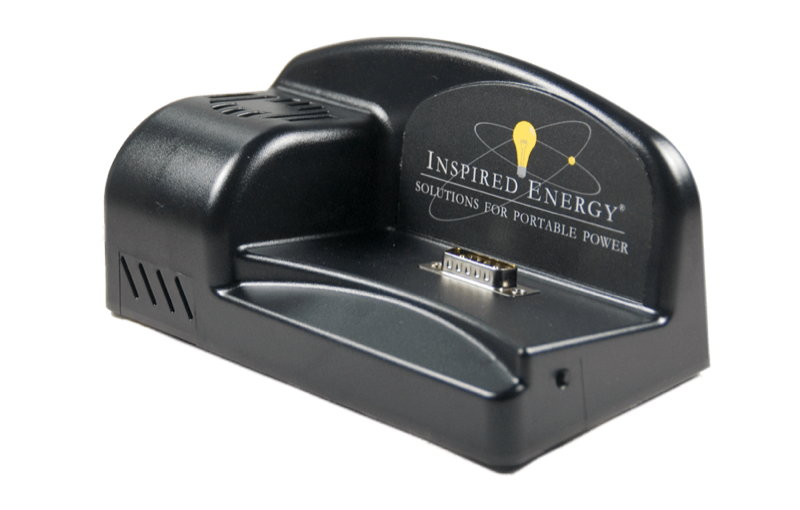

PH1000
The PH1000 SMbus desktop battery charger and calibrator is a standalone unit providing charge to the Inspired Energy P-series battery products.
- Charges
- 12 packs
- Cords
- 3 regions
Specifications
| Functions | Charge, Calibrate |
|---|---|
| Mains input | 110-240 VAC, 50-60 Hz |
| Power supply included | Yes |
| AC cord options | US, EU, UK |
| Mating connector | 7-Pin D-Sub |
| Dimensions (in) | 7" x 3.6" x 3.5" |
| Dimensions (mm) | 180 x 92 x 88 |
Stock numbers
| NSN (are available below.) | 6130-01-699-9237 |
|---|
Currently a sentence. On the live site these numbers sit inside the product description, where nothing can index or filter them. Defence buyers search by NSN.
Approvals
- UL
- REACH
- RoHS3
Packs this works with
Generated from the pack records. Nobody typed this list.
- PB3037HD29 7.2 V, 2.8 Ah
- PD3074HD26 14.4 V, 2.6 Ah
- PD3077HD26 7.2 V, 5.2 Ah
- PH2054HD34 14.4 V, 6.8 Ah
- PH2054HD34 and PH4000 Package Offer 14.4 V, 6.8 Ah
- PH2059HD29 28.8 V, 2.9 Ah
- PH2059HD34 28.8 V, 3.4 Ah
- PH2059QE34 28.8 V, 3.4 Ah
- PH3054HD29 14.4 V, 5.6 Ah
- PH3054QE29 14.4 V, 5.6 Ah
- PH3059HD29 28.8 V, 2.8 Ah
- PH3059QE29 28.8 V, 2.8 Ah
Documents
About this part
The PH1000 SMbus desktop battery charger and calibrator is a standalone unit providing charge to the Inspired Energy P-series battery products. Complete with a universal power supply (110VAC-240VAC, 50-60HZ) for global compatibility. AC mains cord options available, please specify your country application when ordering. Compliant to the current environmental standards for REACH/RoHS3. CE/FCC & customs Declarations are available below. NSN 6130-01-699-9237 Qty 1-9, $196.73 USD ea. To place an order or for additional quantity pricing, please contact us.
