Charger
P-Series

PH4000

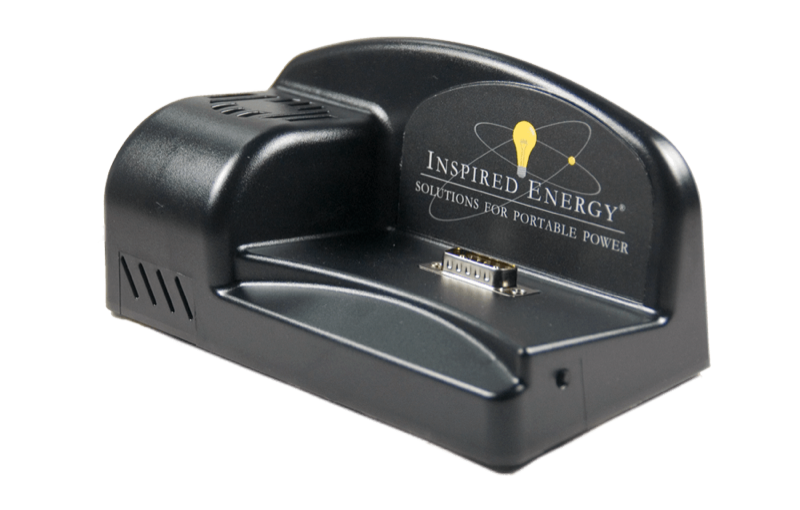

The PH4000A SMbus battery charger is a standalone unit providing charge to the Inspired Energy P-series battery products up to 14.4V.

Charges: 6 packs
Cords: 3 regions

Specifications

Specifications for PH4000
Functions	Charge
Mains input	110-240 VAC, 50-60 Hz
Power supply included	Yes
AC cord options	US, EU, UK
Mating connector	7-Pin D-Sub
Dimensions (in)	7" x 3.6" x 3.5"
Dimensions (mm)	180 x 92 x 88

Approvals

REACH
RoHS3

Packs this works with

Generated from the pack records. Nobody typed this list.

Documents

Instruction manual Revision 1.0 /downloads/PH4000/manual

About this part

The PH4000A SMbus battery charger is a standalone unit providing charge to the Inspired Energy P-series battery products up to 14.4V. Complete with a universal 24VDC power supply (110VAC-240VAC, 50-60HZ) and American style AC power cord. Compliant to the current environmental standards for REACH/RoHS3. Declarations are available below. Qty 1-49, $105.00 USD ea. To place an order or for additional quantity pricing, please contact us.
