  • Battery pack
  • S-Series

SJ3008HD29

18 V 5.2 Ah smart lithium-ion battery pack.

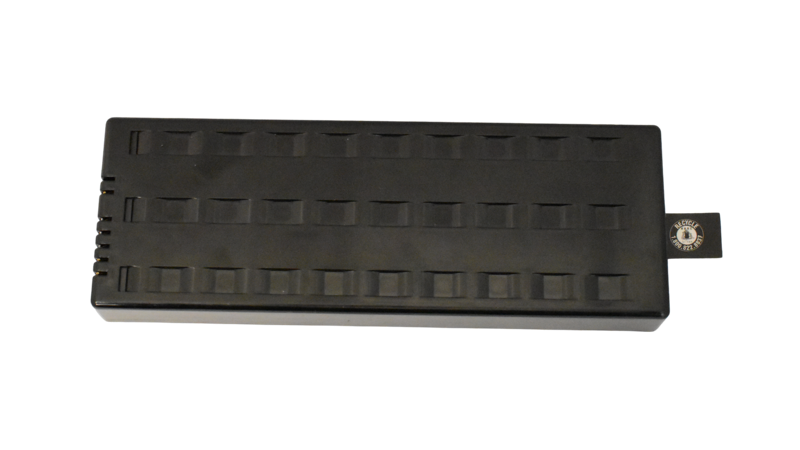

SJ3008HD29 product photo
SJ3008HD29, additional view 2
Voltage
18 V
Capacity
5.2 Ah
Energy
94 Wh
Current
20 A

Specifications

Nominal voltage18 V
Capacity5.2 Ah
Energy94 Wh
Maximum discharge current20 A
Rated power275 W
ChemistryLithium-ion
Cell10 x 18650
Cell array5S2P
ShapeRectangular
Dimensions (in)8.16" x 2.93" x 1.06"
Dimensions (mm)207.3 x 74.4 x 26.9
Fuel gaugePush button 4-bar LED
IP ratingNone
Mating connectorInspired Energy P/N 619095

Chargers for this pack

Documents

That address never changes. The revision is a field, not part of the filename, so issuing revision 1.1 replaces the file behind the same URL. Today the version is in the filename, so every revision 404s the previous link.

About this part

No description published.
