  • Charger
  • P-Series

PM4000A

The PM4000A SMbus desktop battery charger is a standalone unit providing charge to the Inspired Energy P-series battery products.

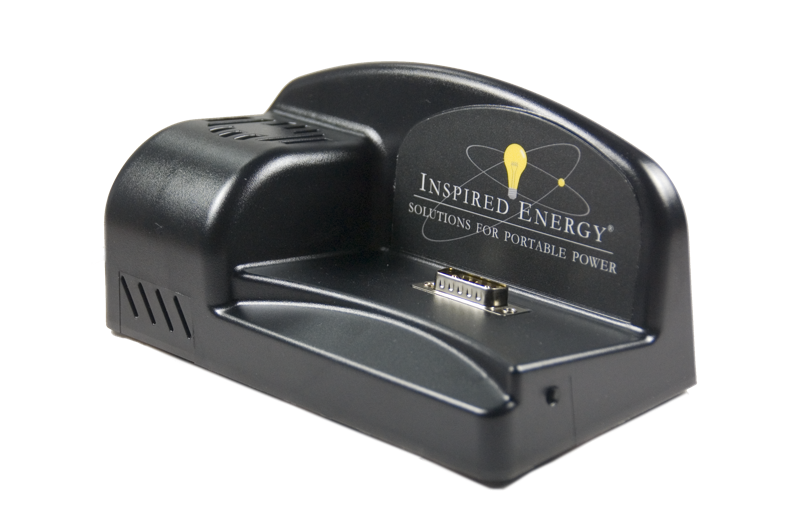

PM4000A product photo
Charges
0 packs
Cords
3 regions

Specifications

FunctionsCharge
Mains input110-240 VAC, 50-60 Hz
Power supply includedYes
AC cord optionsUS, EU, UK
Mating connector7-Pin D-Sub
Dimensions (in)7" x 3.6" x 3.5"
Dimensions (mm)180 x 92 x 88

Approvals

  • REACH
  • RoHS3

Documents

About this part

The PM4000A SMbus desktop battery charger is a standalone unit providing charge to the Inspired Energy P-series battery products. Complete with a Class II Medical universal power supply (110VAC-240VAC, 50-60HZ) for global compatibility. North American style, AC mains cord included. Compliant to the current environmental standards for REACH/RoHS3. CE/FCC & customs Declarations and Instruction Manual are available below. Qty 1-9, $191.86 USD ea. To place an order or for additional quantity pricing, please contact us.
