- Charger
- P-Series
PH1000CAL

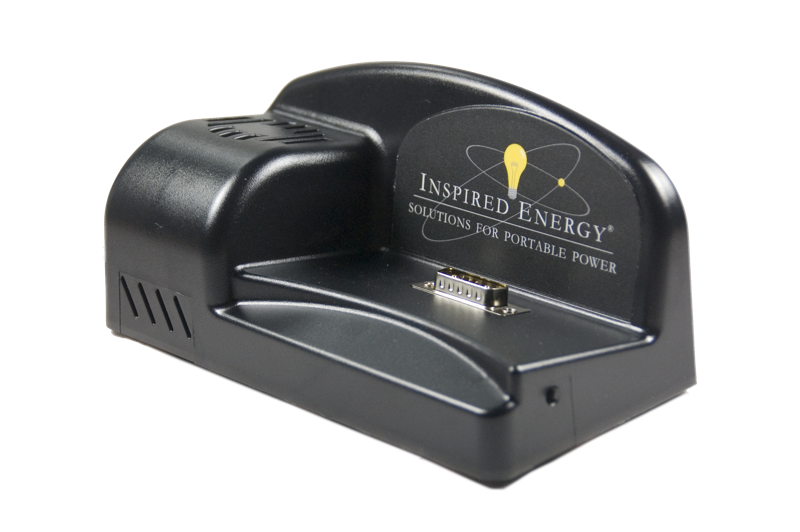

The PH1000CAL SMbus desktop battery charger and calibrator is a standalone unit providing charge to the Inspired Energy P-series battery products.
- Charges
- 0 packs
- Cords
- 3 regions
Specifications
| Functions | Charge, Calibrate |
|---|---|
| Mains input | 110-240 VAC, 50-60 Hz |
| Power supply included | Yes |
| AC cord options | US, EU, UK |
| Mating connector | 7-Pin D-Sub |
| Dimensions (in) | 7" x 3.6" x 3.5" |
| Dimensions (mm) | 180 x 92 x 88 |
Approvals
- REACH
- RoHS3
Documents
About this part
The PH1000CAL SMbus desktop battery charger and calibrator is a standalone unit providing charge to the Inspired Energy P-series battery products. This is a unit used to adjust the battery state of charge to 25% for shipping or storage when the battery is inserted. While it also includes a full cycle re-calibration function that will leave the battery fully charged, it is not intended to be used to fully charge a battery. Complete with a universal power supply (110VAC-240VAC, 50-60HZ) for global compatibility. AC mains cord options available, please specify your country application when ordering. Compliant to the current environmental standards for REACH/RoHS3. CE/FCC & customs Declarations are available below. Qty 1-9, $201.98 USD ea. To place an order or for additional quantity pricing, please contact us.
