Battery pack
N-Series

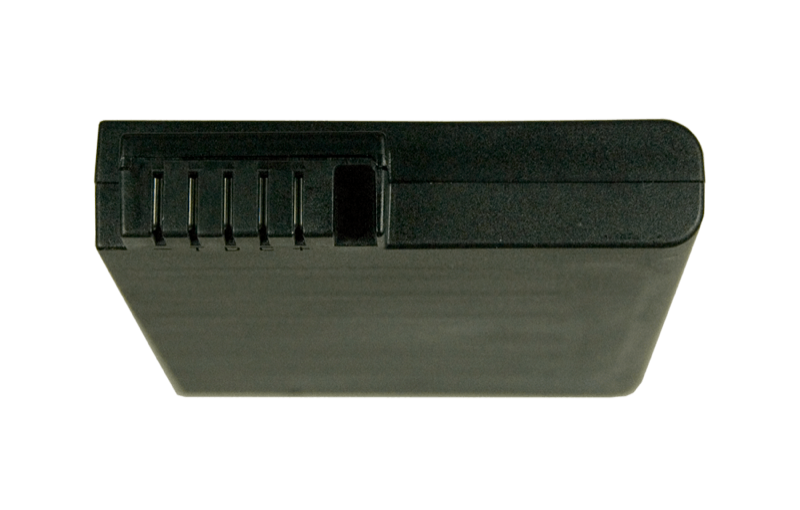

Ni2020HD24

10.8 V 7.2 Ah smart lithium-ion battery pack.

Voltage: 10.8 V
Capacity: 7.2 Ah
Energy: 78 Wh
Current: 6 A

Specifications

Specifications for Ni2020HD24
Nominal voltage	10.8 V
Capacity	7.2 Ah
Energy	78 Wh
Maximum discharge current	6 A
Rated power	45 W
Chemistry	Lithium-ion
Cell	9 x 18650
Cell array	3S3P
Shape	Rectangular
Dimensions (in)	5.9" x 3.5" x 0.8"
Dimensions (mm)	149.1 x 89 x 20.3
Equivalent lithium content	6.9 g
IP rating	None
Mating connector	5-Pin Standard Connector
Cavity size	21mm x 90 mm cross section

Documents

That address never changes. The revision is a field, not part of the filename, so issuing revision 2.3 replaces the file behind the same URL. Today the version is in the filename, so every revision 404s the previous link.

About this part

Ni2020HD24 Smart Lithium-Ion Battery: The Ni2020 is ideal for low temperature applications as the low internal impedance enables the cells to deliver good capacity and discharge current. The Ni2020 can perform as low as -30°C (note, in cases of low temperature applications, we strongly recommend testing in your specific application). Features: • SMbus • Pull tab for easy removal • On-pack LCD Display for Relative SOC Indication Our expertise lies in creating customized battery hybrids that seamlessly integrate standard components to deliver optimal performance. Want to connect with our experts? Click here to contact our technical, engineering, and manufacturing teams in Newberry, Florida. Ni2020HD24 Smart Li-ion battery customization options: • SHA-1 secure handshake • Custom label • Custom Firmware • Additional performance options for OEM applications N-series chargers are recommended for these batteries. Need additional power and capacity? Check out our Ni2020ED29 smart battery. For Quantities 1-11:$120.10 USD each Ready to order or need additional information on volume pricing? Click the "Get a Quote" button below to place your order.
