Charger
N-Series

MC20504

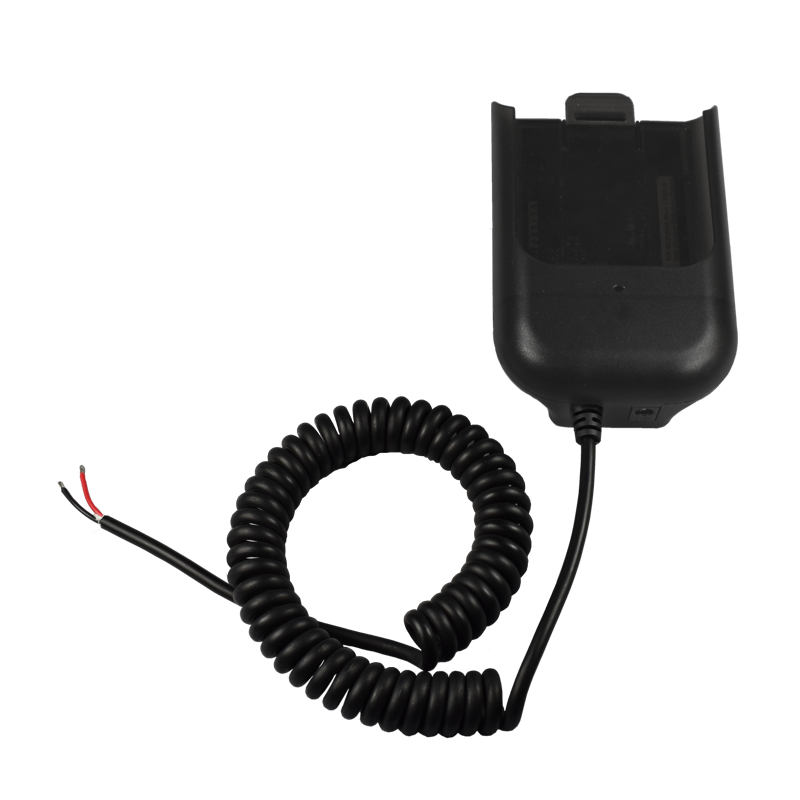

Belt pack holster for NDx057 batteries with integrated charger.

Charges: 2 packs
Cords: 3 regions

Specifications

Specifications for MC20504
Functions	Charge
Power supply included	Yes
AC cord options	US, EU, UK

Packs this works with

Generated from the pack records. Nobody typed this list.

ND2057HD34 7.2 V, 6.8 Ah
ND2057QE34 7.2 V, 6.8 Ah

Documents

No datasheet published. The gap is shown rather than hidden, and npm run validate lists it as a warning on every build.

About this part

Belt pack holster for NDx057 batteries with integrated charger. 2-wire 6' coiled cable to bare leads (no connector) with 12Vdc output. 10-24Vdc input with power supply, AC mains cord and vehicle cable. Compatible with 4 cell, ND2057 & ND3057 battery packs Qty 1-9, $152.71 USD ea. To place an order or for additional quantity pricing, please contact us.
