  • Embeddable board

EB335A

Single Battery Charger Board, N-series (3.6 to 14.4V battery).

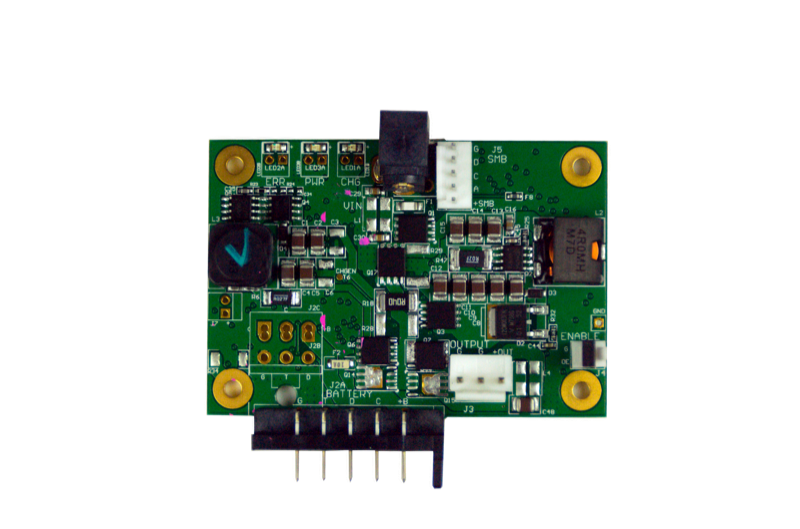

EB335A product photo

Specifications

Input voltageundefined VDC
Battery voltage rangeundefined-undefined V
OutputBattery voltage or input, whichever is higher
Dimensions (in)2.34" x 3" x 6"

Documents

That address never changes. The revision is a field, not part of the filename, so issuing revision 3.8 replaces the file behind the same URL. Today the version is in the filename, so every revision 404s the previous link.

About this part

Single Battery Charger Board, N-series (3.6 to 14.4V battery). 10-24VDC, 60W input. The board will pass through either the battery voltage or the input DC voltage; whichever is higher. Vin: 10-24VDC Nom Batt V: 3.6 to 14.4V Vo: Batt or Vin
