Embeddable board
N-Series

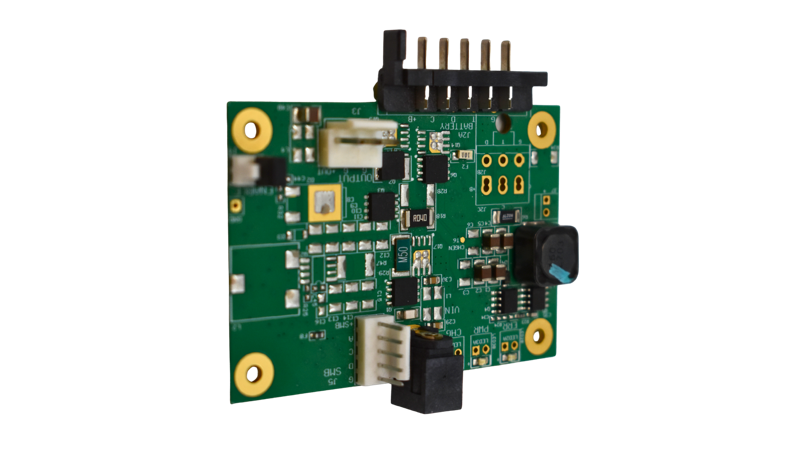

EB330A

Single-battery charger board for N-series packs, 24VDC in, battery voltage out.

Specifications

Specifications for EB330A
Channels	1
Input voltage	24 VDC
Input power	60 W
Battery voltage range	3.6-14.4 V
Output	Battery voltage
Dimensions (in)	2.34" x 3" x 0.6"

Documents

Datasheet Revision 3.51, published 2024-06-05 /downloads/EB330A/datasheet

That address never changes. The revision is a field, not part of the filename, so issuing revision 3.61 replaces the file behind the same URL. Today the version is in the filename, so every revision 404s the previous link.

Typical applications

Robotics
Industrial
Medical

About this part

Embeds the charge circuit into the host device so the pack charges in place. Output follows the battery, with no pass-through when the pack is absent.
