Embeddable board

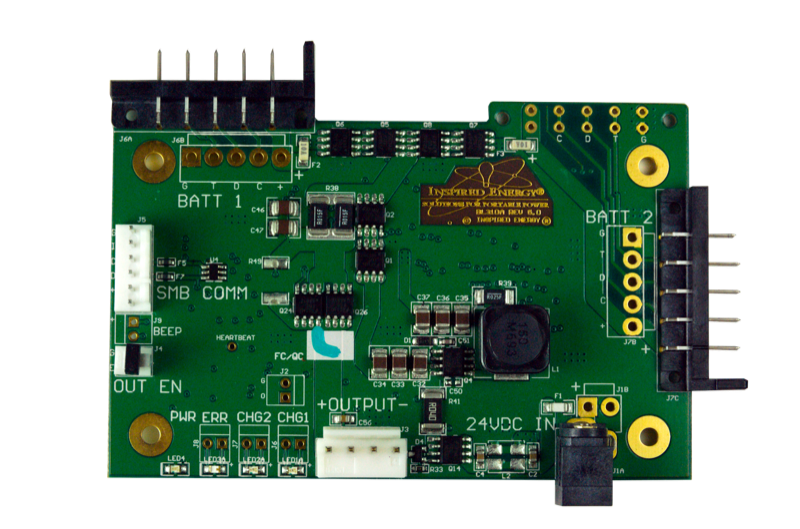

EB325A

Name: EB325A embeddable board
Brand: Inspired Energy
SKU: EB325A
Price: 191.85 USD
Availability: InStock

Dual Battery Charger Board, N-series (3.6 to 14.4V battery).

Specifications

Specifications for EB325A
Input voltage	undefined VDC
Battery voltage range	undefined-undefined V
Output	Battery voltage or input, whichever is higher

Documents

Datasheet Revision 1.11 /downloads/EB325A/datasheet

That address never changes. The revision is a field, not part of the filename, so issuing revision 1.2 replaces the file behind the same URL. Today the version is in the filename, so every revision 404s the previous link.

About this part

Dual Battery Charger Board, N-series (3.6 to 14.4V battery). 20-24VDC, 60W input . 24VDC input passes thru when present, if battery not present for output. Vin: 20-24VDC Nom Batt V: 3.6 to 14.4V Vo: Batt or Vin
