EB310A

Dual Battery Charger Board, N-series (3.6 to 14.4V battery).

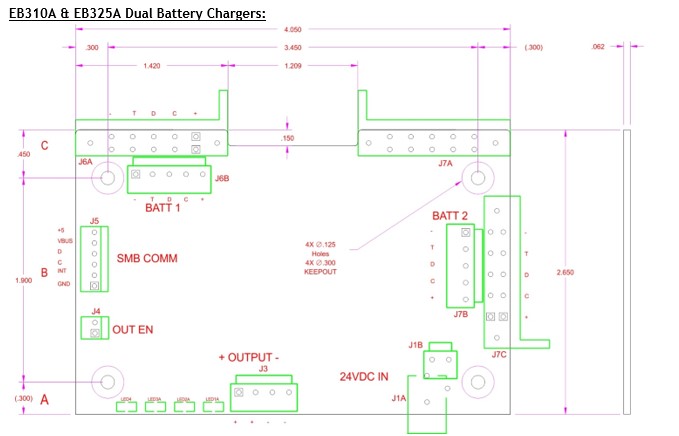

EB310A product photo

Specifications

Input voltageundefined VDC
Battery voltage rangeundefined-undefined V
OutputBattery voltage or input, whichever is higher
Dimensions (in)2.65" x 4.05" x 6"

Documents

That address never changes. The revision is a field, not part of the filename, so issuing revision n+1 replaces the file behind the same URL. Today the version is in the filename, so every revision 404s the previous link.

About this part

Dual Battery Charger Board, N-series (3.6 to 14.4V battery). 20-24VDC, 60W input. The output will therefore vary from the battery charge voltage down to the battery cutoff voltage. Note: if both batteries are removed there will be no output. Vin: 20-24VDC Nom Batt V: 3.6 to 14.4V Vo: Batt
