CR03H205

3X POWER BOX PROVIDES UPS POWER WITH INTEGRATED CHARGING.

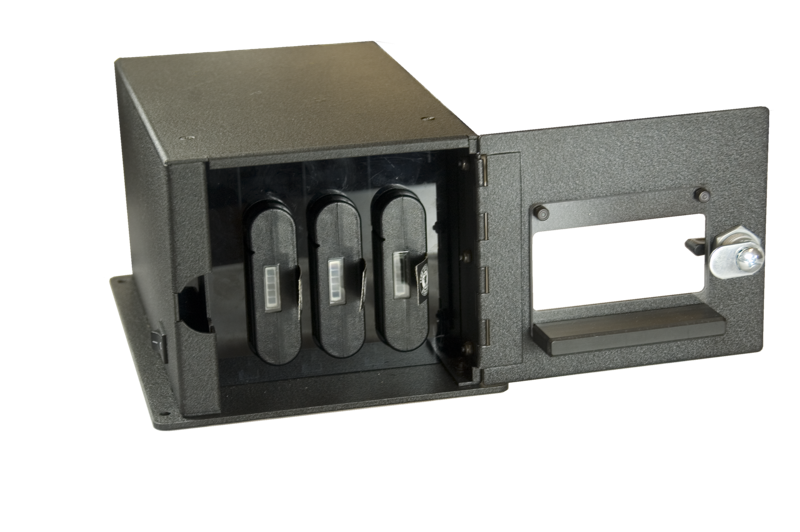

CR03H205 product photo
CR03H205, additional view 2CR03H205, additional view 3
Charges
0 packs
Cords
3 regions

Specifications

FunctionsCharge
Power supply includedYes
AC cord optionsUS, EU, UK
Dimensions (in)8.92" x 6.53" x 4.85"
Dimensions (mm)226.75 x 165.85 x 123.5

Documents

About this part

3X POWER BOX PROVIDES UPS POWER WITH INTEGRATED CHARGING. 24VDC/150W output with 150W input charge power for simultaneous charging of on-board batteries. Ideal for backup power on rack equipment or electronic cart applications. The new power pack from Inspired Energy works with our 8-cell, 98Wh NH2054QE34 battery packs (sold separately) & includes the following features: • Onboard chargers with globally compliant AC/DC power adaptor included.• 24VDC/150W voltage output.(Output Mate: Lemo ERA.1S.302.CLL or PCA.1S.302.CLLC62Z)• Battery fuel gauge remains visible at all times through the windowed door.• On-off power switch for full output isolation.• Ruggedized dustproof case.• Locking output connector for a secure connection. Qty 1-9, $779.36 USD ea. To place an order or for additional quantity pricing, please contact us.
