- Charger
- N-Series

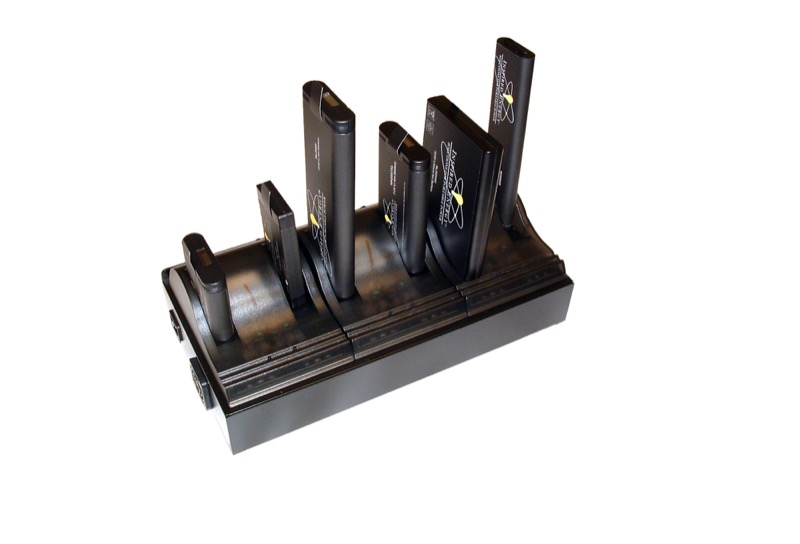

CH6555CAL
The CH6555 6-bay, simultaneous smart SMbus charger and calibrator is a standalone unit which charges (6) Inspired Energy batteries at the same time, reducing cycle time for multi-battery applications.
- Bays
- 6
- Charges
- 3 packs
- Cords
- 3 regions
Specifications
| Bays | 6 |
|---|---|
| Functions | Charge, Calibrate |
| Mains input | 110-240 VAC, 50-60 Hz |
| AC cord options | US, EU, UK |
| Mating connector | 5-Pin Standard Connector |
| Dimensions (in) | 15.75" x 8" x 5" |
| Dimensions (mm) | 400 x 200 x 126 |
| Not compatible with | P & Nx4xxx Series batteries Qty 1-9, $995 |
Approvals
- UL
- CE
- REACH
- RoHS3
Accessories that fit
Packs this works with
Generated from the pack records. Nobody typed this list.
Documents
About this part
The CH6555 6-bay, simultaneous smart SMbus charger and calibrator is a standalone unit which charges (6) Inspired Energy batteries at the same time, reducing cycle time for multi-battery applications. This is a unit used to adjust the battery state of charge to 25% for shipping or storage when the battery is inserted. While it also includes a full cycle re-calibration function that will leave the battery fully charged, it is not intended to be used to fully charge a battery. Variants are available for use in North America (CH6555A), Europe (CH6555E) or the UK (CH6555U) with a universal power input (110VAC-240VAC, 50-60HZ) for global compatibility. Compliant to the current environmental standards for REACH/RoHS3. Declarations are available below. UL Listed, FCC & CE Compliant The CH6555 is not compatible with P & Nx4xxx Series batteries Qty 1-9, $995.12 USD ea. To place an order or for additional quantity pricing, please contact us.
